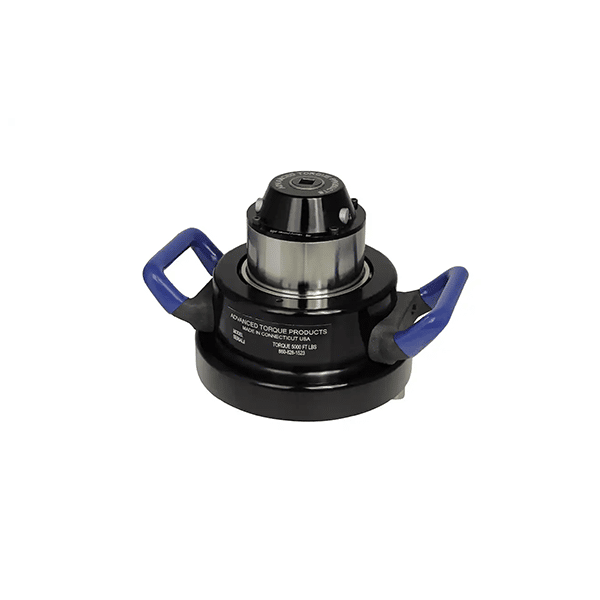

1-1/4″ Male Square Drive 5,000 ft-lb Digital Torque Multiplier with Angle Measurement – ATP5000E

The Snap-on torque multiplier ATP5000E belongs to the Snap-on cordless and digital torque multipliers range, and Lost in HCM supplies it to workshops and factories across Vietnam. The input capacity is 40 ft-lb. The overall height is 7 inches.

Snap-on torque multiplier ATP5000E overview

The Snap-on torque multiplier ATP5000E lets one person tighten or loosen large bolts that a hand wrench cannot handle. A gear train multiplies the input, while a reaction arm takes the counter force. As a result, the operator stays safe and the joint gets a controlled torque.

This Snap-on family has two groups of tools. First, the 18 V MonsterLithium cordless multipliers cover about 118 to 3,000 ft-lb. Next, the digital multipliers use hand input with ratios from 22:1 to 625:1, and the largest model reaches 16,000 ft-lb.

The output drive type is Male Square. The outside diameter is 8.25 inches. Snap-on lists the country of origin as USA.

The output capacity is 5,000 ft-lb. It weighs 25 lb. The output drive size is 1-1/4 inches.

The multiplier ratio is 125:1.

Specifications at a glance

The table below follows the Snap-on data for ATP5000E. In addition, we converted imperial torque values to N·m where Snap-on lists none.

How the torque multiplier works

A torque multiplier uses planetary gears to turn a small input into a large output. For example, a 125:1 ratio turns modest hand torque into thousands of ft-lb. However, gear losses mean the real output is a little lower than the simple math suggests.

Every multiplier must push back against something, so it has a reaction arm. You place that arm against a solid point, such as the next nut or a bracket. Then the arm holds the housing still while the output drive turns the bolt.

Key features of the Snap-on torque multiplier ATP5000E

Every tool in this family shares the same core idea, gears that multiply torque against a reaction arm. Here are the features that matter most when you compare models and options.

• High output from low input. Gear ratios from 22:1 up to 625:1 turn modest input into very high output. As a result, one technician can reach bolt torques that would need a long bar and several people.
• 18 V cordless operation. The MonsterLithium models run on an 18 V, 5.0 Ah battery, so they need no air hose or power cord. That makes them easy to carry across wind farms, plants, and ship decks.
• Automatic two-speed rundown. Cordless models spin fast to run the nut down, then slow down for the final torque. This saves time on long bolts while keeping the last part of the pull under control.
• Joint sensing with braking. Snap-on states that the tool measures the joint during tightening and brakes when needed. Therefore, it limits torque overshoot that motor inertia would otherwise cause on hard joints.
• Digital output display. The hand-input multipliers show the output torque on a built-in display. So the operator reads the real value at the bolt instead of relying on ratio math and a guessed loss factor.
• Angle measurement on E models. Digital models with an E in the code add angle measurement. That helps with torque-then-angle specs, which many large structural and engine joints now call for.

Typical applications

A torque multiplier earns its place where a long bar would be unsafe or too slow. The tasks below are the most common uses we see from buyers in Vietnam.

• Wind turbine tower bolts. Tower and blade bolts on wind turbines need high, even torque across many fasteners. A cordless multiplier lets technicians work inside the tower without air lines or heavy hydraulic pumps.
• Pipeline and pressure flanges. Oil, gas, and steam flanges need even torque so they seal without leaks. Therefore, crews use a multiplier with a display to hit each bolt value in the right sequence.
• Heavy truck and mining wheels. Large wheel nuts on mining trucks and loaders need torque well above hand range. In addition, a portable multiplier works in the field where a shop press is not available.
• Steel structure connections. Bridges, plant frames, and crane rails use large bolts that need a known torque. A multiplier with angle measurement also helps with joints that use a torque-then-angle method.
• Breaking loose seized bolts. Rusted bolts on old machines can need huge torque to break free. Instead of hammering a long bar, a multiplier applies steady force, which lowers the risk of injury.
• Ship and port equipment. Ship engines, propeller hubs, and port cranes use large fasteners in tight spaces. So maintenance crews rely on compact multipliers that fit where long wrenches cannot swing.

Industries that use the Snap-on torque multiplier ATP5000E

Any sector with large flanges, wheels, or steel frames needs controlled high torque. So these tools show up on wind farms, ships, mines, and plants. Here is how each industry uses them in practice.

• Wind and renewable energy. Wind farms in Bac Lieu, Soc Trang, and Ninh Thuan need regular bolt checks on towers and hubs. Cordless multipliers help service teams finish these checks without heavy hydraulic gear.
• Oil and gas. Offshore and onshore sites near Vung Tau use large flanges and studs on pipes and vessels. Therefore, crews need high torque tools that also leave a clear record for each joint.
• Power plants. Thermal and hydro plants service turbine casings, pumps, and large valves during outages. A multiplier with a display lets teams hit each bolt value and record it for the outage report.
• Mining and construction. Mining trucks, excavators, and crushers use huge wheel and frame bolts. Meanwhile, contractors across Vietnam need portable tools that work far from shop power and air supply.
• Shipbuilding and ports. Shipyards and ports in Hai Phong and Cai Mep handle large engines, cranes, and deck fittings. Compact multipliers help crews torque these bolts in tight spaces on board.
• Heavy manufacturing. FDI steel, cement, and machinery plants run presses, kilns, and gearboxes with large fasteners. So maintenance teams use multipliers to keep these bolts at spec during planned shutdowns.

Snap-on torque multiplier ATP5000E compared with similar brands

Before you buy, it helps to see how the Snap-on torque multiplier ATP5000E compares with other high torque tools. However, peak output is not the only question. Instead, think about power source, data needs, weight, and the service support your team has in Vietnam.

If your crews need high torque far from air lines, the cordless models are a strong choice. For lower budgets, the digital hand-input models still show the real output. Even so, confirm current specs with each maker before you compare. Specifications change over time, so confirm current data with each maker before you decide.

Choosing the right model

• Start with the highest bolt torque you need, then pick a model whose range puts that value in the middle. Running a tool near its limit all day shortens gear life.
• Check the output drive size before you order. For example, the largest digital models use a 2-1/4 inch hex output, so you may need matching sockets or adapters.
• Next, decide between battery power and hand input. Cordless models save time on many bolts, while hand-input models cost less and need no charging between shifts.
• Look at reaction space around the joint. The arm needs a solid point to push against, so plan where it will sit before you lift the tool into place.
• Choose an E model or a cordless unit if your specs include angle or if you must keep records. Otherwise, a basic digital model may be enough.
• Also, check the tool weight against your access. Large models in this family weigh well over 50 lb, so plan a hoist or a second person for overhead work.

For other sizes in the same range, compare 1-1/4" Male Square Drive 5,000 ft-lb Digital Torque Multiplier – ATP5000, 3/4" Male Square Drive 1,200 ft-lb Digital Torque Multiplier with Angle Measurement – ATP2000E, 2-1/4" Male Hex Drive 16,000 ft-lb Digital Torque Multiplier with Angle Measurement – ATP8000E, 3/4" Male Square Drive 750 ft-lb Digital Torque Multiplier with Angle Measurement – ATP16000E. Also browse the full Snap-on torque tools shop for handles, testers and adapters.

Care, storage and calibration

• Store the multiplier in its case in a dry room, with batteries removed from cordless units. Then the gear train and contacts stay free of dust and moisture.
• Wipe off grease, mud, and metal chips after each job. Also check the reaction arm and output drive for cracks or wear, because damage here can fail under load.
• Have the tool's torque output checked every 12 months, in line with the 12-month interval ISO 6789-1:2017 sets for hand torque tools. We can arrange recalibration through an accredited laboratory.
• Never exceed the rated input or output, and never use the tool without a secure reaction point. Overload can strip the gears, so stop and inspect after any slip.
• Transport heavy models on a cart or in a padded case, secured against sliding. In addition, keep batteries charged but cool during the hot season to protect cell life.
