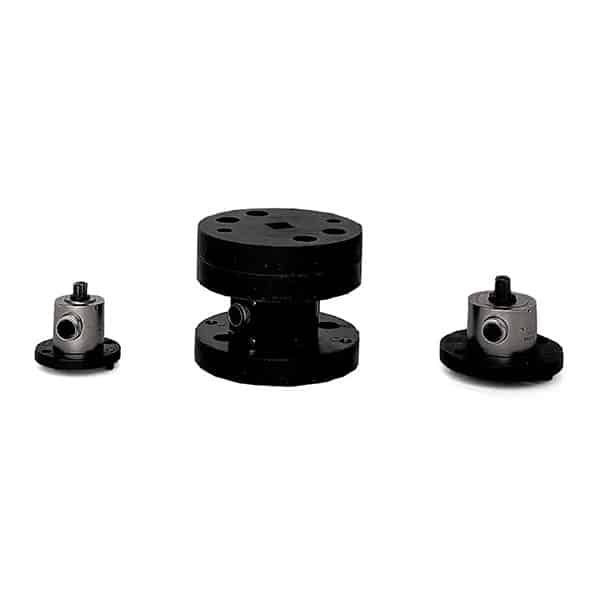

1/2″ Drive Transducer – TTC11

The torque tester component TTC11 belongs to the Snap-on TTC series transducers and mounts range, and Lost in HCM supplies it to workshops and factories across Vietnam. It uses a 1/2 in square drive, so match sockets and adapters to that size. Snap-on lists the country of origin as USA.

Torque tester component TTC11 overview

Quality teams need proof that their wrenches and screwdrivers still read true between lab visits. The torque tester component TTC11 supports that proof, because the TTC system turns a bench into a test station. So checks can run on site instead of waiting for a shipment.

Warranty terms differ by item, so read the line on each product page. Several small units are field repairable, while the larger 3/4 and 1 inch units carry a one-year Snap-on Repair Center term. Lost in HCM supplies them with CO/CQ papers and a VAT e-invoice.

The bench top mounting bracket is TTC3422. The range is 20–250 ft-lb. The square drive size, inches [range, ft-lb] is 1/2 [20–250].

The square drive is 1/2 inches.

Specifications at a glance

The table below follows the Snap-on data for TTC11. In addition, we converted imperial torque values to N·m where Snap-on lists none.

How the torque tester component works

Every transducer is most accurate inside its stated range, not near zero. That is why Snap-on splits the system into many bands, from in-oz units for small screwdrivers to ft-lb units for heavy wrenches. You then choose the band that fits each tool.

The bench bracket matters as much as the sensor, because any movement adds error. Small units share the TTC3421 bracket, while 1/2 and 3/4 inch units use the TTC3422. Meanwhile, the 1 inch units mount on the TTC15002 for high loads.

Key features of the torque tester component TTC11

The details below explain how the TTC system covers small screwdrivers and heavy wrenches alike. They also show what to check before you add a new transducer or bracket to your bench.

• Wide range of torque bands. The family spans 5 in-oz on the TTC4 to 2,000 ft-lb on the TTC14. Therefore, one system can check small torque screwdrivers and heavy click wrenches on the same bench.
• Five square drive sizes. Drive sizes include 1/4, 3/8, 1/2, 3/4, and 1 inch. So each transducer matches the drive of the tools it checks, and you avoid long adapter stacks that add error.
• Correct adapter included. Snap-on states that all TTC series transducers include the correct adapter for the indicated torque range. As a result, you can start testing without sourcing extra drive parts.
• Matching bench brackets. Each transducer lists a bench top mounting bracket, such as the TTC3421, TTC3422, or TTC15002. A rigid mount keeps the sensor still, so readings stay steady during each pull.
• Table mount for the 4-in-1. The TTC34325 bracket mounts the TTC400 4-in-1 transducer to a table. In addition, it gives that transducer a fixed home, so setup takes less time at the start of a shift.
• In-oz units for small tools. The TTC4 and TTC5 read in inch-ounces, from 5 to 200 in-oz. That is why they suit small torque screwdrivers used on electronics and precision assemblies.

Snap-on data sheet notes

Snap-on also lists these details for TTC11:

• All TTC series transducers include the correct adaptor for the indicated torque range.

Typical applications

These transducers solve one problem well: showing whether a torque tool still reads true. Below are typical jobs where that matters, from tool crib checks to operator training. Each one also builds a useful record.

• Tool crib wrench checks. Tool cribs check click wrenches when they come back from the line. A transducer on a fixed bracket makes this quick, so suspect tools leave service before the next shift.
• Incoming tool inspection. New torque tools should be checked before they reach the floor. Therefore, quality teams test each new wrench on a transducer and file the result with its certificate.
• Torque screwdriver checks. Small screwdrivers on electronics lines work at very low values. For example, the TTC4 and TTC5 read in in-oz, so they show small errors that larger units would miss.
• Heavy wrench checks. Large wrenches for frames, tracks, and flanges need a high-range sensor. The 3/4 and 1 inch units cover up to 2,000 ft-lb, while their brackets hold the high loads.
• Operator training sessions. New operators often pull a wrench too fast or past the click. A transducer shows each pull as a number, so trainers can correct technique on the spot.
• Audit and repair follow-up. After a drop or a repair, a wrench should be checked before reuse. In addition, a quick transducer test gives the team a record for the next quality audit.

Industries that use the torque tester component TTC11

Torque transducers matter wherever a plant must prove that its torque tools still read true. The industries below rely on them every day. Many of these teams also work in FDI plants across Vietnam.

• Automotive assembly. Car and motorcycle plants run hundreds of preset wrenches on each line. In Vietnam, many FDI plants check these tools every shift, so in-house transducers save time between lab visits.
• Electronics manufacturing. Electronics plants in Bac Ninh and Hai Phong use small torque screwdrivers on boards and housings. Therefore, low-range in-oz transducers help their teams confirm those tools stay within tolerance.
• Aviation maintenance. Aircraft maintenance teams must prove that each torque tool reads true before use. So MRO shops at Vietnamese airports keep test benches near the hangar for daily checks.
• Heavy equipment and mining. Excavators and haul trucks use large bolts with high torque values. For this reason, contractors in Vietnam need 3/4 and 1 inch transducers to check their heavy wrenches on site.
• Energy and power plants. Turbines, generators, and transformers use many flange and frame bolts. Power plant crews in Vietnam also run torque checks before outages, so each wrench is ready for the work.
• Plant quality departments. Quality teams in Binh Duong and Dong Nai keep torque records for ISO audits. In addition, they use transducers to screen tools between visits to an accredited laboratory.

Torque tester component TTC11 compared with similar brands

Several makers sell torque transducers and test benches for hand tools. They differ in range steps, drive sizes, and the readouts they connect to. The table below shows where the torque tester component TTC11 fits among common options in Vietnam.

TTC transducers suit teams that already use Snap-on testers or want one system from in-oz to 2,000 ft-lb. Other brands may fit better when your readouts come from another maker. Confirm current specs with each maker before you compare. Specifications change over time, so confirm current data with each maker before you decide.

Choosing the right model

• List the tools you plan to check and their highest settings. Then pick transducers whose ranges cover those values without sitting near the bottom of the band.
• Match the square drive of the transducer to the tools you test. For example, 3/8 inch wrenches belong on the TTC7 or TTC8, not on a 1/2 inch unit.
• Order the matching bench bracket with each transducer. Small units use the TTC3421, while 1/2 and 3/4 inch units use the TTC3422.
• Plan for the 1 inch units separately, because loads up to 2,000 ft-lb need a solid bench. The TTC13 and TTC14 mount on the TTC15002 bracket.
• Check that your tester readout accepts TTC transducers before you order. If you are unsure, send us the readout model and we will confirm the match.
• Read the warranty line on each product page. Terms range from field repairable to a one-year Snap-on Repair Center term, depending on the unit.

For other sizes in the same range, compare 3/4" Drive Transducer – TTC12, 1/4" Drive Transducer – TTC6, 4-in-1 Table Mounting Bracket – TTC34325, 1" Drive Transducer – TTC13. Also browse the full Snap-on torque tools shop for handles, testers and adapters.

Care, storage and calibration

• Store each transducer in a clean, dry case, away from coolant and spray. Also cap the connector, so dust and moisture stay out of the contacts.
• Wipe the housing and drive with a dry cloth after use. Never soak a transducer in solvent, because liquid can harm the cable and the seals.
• Have each transducer calibrated about once a year so its readings stay traceable. For the wrenches it checks, ISO 6789-1:2017 recommends 12 months or 5,000 cycles.
• Never load a transducer past its full range, and never test impact tools on it. An overload can damage the sensor, so have it checked after any shock.
• Carry transducers in a padded case between sites, and never hang them by the cable. In addition, keep the case dry in the rainy season to protect the electronics.

Frequently asked questions

Request a quote

Send us the part number, quantity and delivery site, and we will reply with a quote. You can request a quote online or call 0902 327 669.
