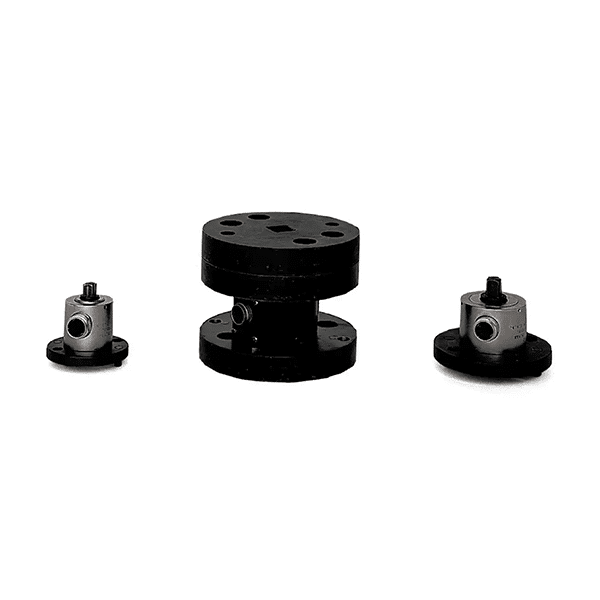

3/8″ Drive Transducer – TTC7

The torque tester component TTC7 belongs to the Snap-on TTC series transducers and mounts range, and Lost in HCM supplies it to workshops and factories across Vietnam. Because it has a 3/8 in square drive, it pairs with standard 3/8 in sockets. Snap-on lists the country of origin as USA.

Torque tester component TTC7 overview

A torque wrench can drift after a drop or heavy use, and the error stays hidden until a joint fails. The torque tester component TTC7 helps your team find that drift early. Then you pull the tool out of service before it reaches the product.

Drive sizes run from 1/4 inch on the smallest units to 1 inch on the largest. In addition, Snap-on states that every TTC transducer includes the correct adapter for its range. Each unit also has a matching bench top bracket, such as the TTC3421 or TTC15002.

The square drive size, inches [range, in-lb] is 3/8 [30–400]. The bench top mounting bracket is TTC3421. The range is 30–400 in-lb.

The square drive is 3/8 inches.

Specifications at a glance

These figures come from the Snap-on listing for TTC7. Values marked “calculated” are unit conversions we added for convenience.

How the torque tester component works

A torque transducer is a precise steel shaft that twists a tiny amount under load. Like most static torque transducers, it carries strain gauges that turn that twist into an electrical signal. Then the tester readout converts the signal into a torque value on screen.

To check a wrench, you first mount the transducer in its bench bracket so it cannot turn. Next, you fit the wrench to the square drive and pull slowly at the handle grip. Finally, you compare the reading with the wrench setting and record the result.

Key features of the torque tester component TTC7

Every item in this family shares the same goal, which is a stable and accurate test setup. Here are the features that matter most when you plan a TTC test bench.

• Wide range of torque bands. The family spans 5 in-oz on the TTC4 to 2,000 ft-lb on the TTC14. Therefore, one system can check small torque screwdrivers and heavy click wrenches on the same bench.
• Five square drive sizes. Drive sizes include 1/4, 3/8, 1/2, 3/4, and 1 inch. So each transducer matches the drive of the tools it checks, and you avoid long adapter stacks that add error.
• Correct adapter included. Snap-on states that all TTC series transducers include the correct adapter for the indicated torque range. As a result, you can start testing without sourcing extra drive parts.
• Matching bench brackets. Each transducer lists a bench top mounting bracket, such as the TTC3421, TTC3422, or TTC15002. A rigid mount keeps the sensor still, so readings stay steady during each pull.
• Table mount for the 4-in-1. The TTC34325 bracket mounts the TTC400 4-in-1 transducer to a table. In addition, it gives that transducer a fixed home, so setup takes less time at the start of a shift.
• In-oz units for small tools. The TTC4 and TTC5 read in inch-ounces, from 5 to 200 in-oz. That is why they suit small torque screwdrivers used on electronics and precision assemblies.

Snap-on data sheet notes

In addition, the Snap-on data sheet for TTC7 notes:

• All TTC series transducers include the correct adaptor for the indicated torque range.

Typical applications

A transducer earns its place where a team needs a fast, reliable check on a torque tool. The tasks below are the most common uses we see from buyers in Vietnam.

• Tool crib wrench checks. Tool cribs check click wrenches when they come back from the line. A transducer on a fixed bracket makes this quick, so suspect tools leave service before the next shift.
• Incoming tool inspection. New torque tools should be checked before they reach the floor. Therefore, quality teams test each new wrench on a transducer and file the result with its certificate.
• Torque screwdriver checks. Small screwdrivers on electronics lines work at very low values. For example, the TTC4 and TTC5 read in in-oz, so they show small errors that larger units would miss.
• Heavy wrench checks. Large wrenches for frames, tracks, and flanges need a high-range sensor. The 3/4 and 1 inch units cover up to 2,000 ft-lb, while their brackets hold the high loads.
• Operator training sessions. New operators often pull a wrench too fast or past the click. A transducer shows each pull as a number, so trainers can correct technique on the spot.
• Audit and repair follow-up. After a drop or a repair, a wrench should be checked before reuse. In addition, a quick transducer test gives the team a record for the next quality audit.

Industries that use the torque tester component TTC7

Torque transducers matter wherever a plant must prove that its torque tools still read true. The industries below rely on them every day. Many of these teams also work in FDI plants across Vietnam.

• Automotive assembly. Car and motorcycle plants run hundreds of preset wrenches on each line. In Vietnam, many FDI plants check these tools every shift, so in-house transducers save time between lab visits.
• Electronics manufacturing. Electronics plants in Bac Ninh and Hai Phong use small torque screwdrivers on boards and housings. Therefore, low-range in-oz transducers help their teams confirm those tools stay within tolerance.
• Aviation maintenance. Aircraft maintenance teams must prove that each torque tool reads true before use. So MRO shops at Vietnamese airports keep test benches near the hangar for daily checks.
• Heavy equipment and mining. Excavators and haul trucks use large bolts with high torque values. For this reason, contractors in Vietnam need 3/4 and 1 inch transducers to check their heavy wrenches on site.
• Energy and power plants. Turbines, generators, and transformers use many flange and frame bolts. Power plant crews in Vietnam also run torque checks before outages, so each wrench is ready for the work.
• Plant quality departments. Quality teams in Binh Duong and Dong Nai keep torque records for ISO audits. In addition, they use transducers to screen tools between visits to an accredited laboratory.

Torque tester component TTC7 compared with similar brands

Several makers sell torque transducers and test benches for hand tools. They differ in range steps, drive sizes, and the readouts they connect to. The table below shows where the torque tester component TTC7 fits among common options in Vietnam.

TTC transducers suit teams that already use Snap-on testers or want one system from in-oz to 2,000 ft-lb. Other brands may fit better when your readouts come from another maker. Confirm current specs with each maker before you compare. Specifications change over time, so confirm current data with each maker before you decide.

Choosing the right model

• List the tools you plan to check and their highest settings. Then pick transducers whose ranges cover those values without sitting near the bottom of the band.
• Match the square drive of the transducer to the tools you test. For example, 3/8 inch wrenches belong on the TTC7 or TTC8, not on a 1/2 inch unit.
• Order the matching bench bracket with each transducer. Small units use the TTC3421, while 1/2 and 3/4 inch units use the TTC3422.
• Plan for the 1 inch units separately, because loads up to 2,000 ft-lb need a solid bench. The TTC13 and TTC14 mount on the TTC15002 bracket.
• Check that your tester readout accepts TTC transducers before you order. If you are unsure, send us the readout model and we will confirm the match.
• Read the warranty line on each product page. Terms range from field repairable to a one-year Snap-on Repair Center term, depending on the unit.

For other sizes in the same range, compare 4-in-1 Table Mounting Bracket – TTC34325, 3/8" Drive Transducer – TTC8, 1/4" Drive Transducer – TTC65, 1/4" Drive Transducer – TTC5. Also browse the full Snap-on torque tools shop for handles, testers and adapters.

Care, storage and calibration

• Store each transducer in a clean, dry case, away from coolant and spray. Also cap the connector, so dust and moisture stay out of the contacts.
• Wipe the housing and drive with a dry cloth after use. Never soak a transducer in solvent, because liquid can harm the cable and the seals.
• Have each transducer calibrated about once a year so its readings stay traceable. For the wrenches it checks, ISO 6789-1:2017 recommends 12 months or 5,000 cycles.
• Never load a transducer past its full range, and never test impact tools on it. An overload can damage the sensor, so have it checked after any shock.
• Carry transducers in a padded case between sites, and never hang them by the cable. In addition, keep the case dry in the rainy season to protect the electronics.
