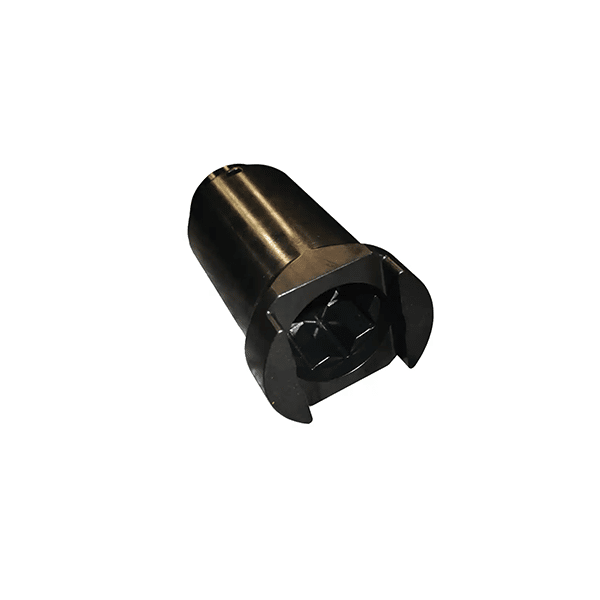

Frog Nut Tool – PTQ8-FROG

The reaction arm accessory PTQ8-FROG belongs to the Snap-on PTQ pneumatic torque wrench reaction arms range, and Lost in HCM supplies it to workshops and factories across Vietnam. The pneumatic torque wrench stock no. is PTQ8. Snap-on lists the country of origin as USA.

Reaction arm accessory PTQ8-FROG overview

The reaction arm accessory PTQ8-FROG holds back the reaction force of a Snap-on PTQ pneumatic torque wrench. Its arm rests on a solid point near the bolt, so the tool body stays still. As a result, the full output goes into the fastener, not the operator.

This family covers short, long, rotatable, ALCO, and twin tool arms. It also includes a frog nut tool and a 12 inch wheel gun extension with a reaction fixture. Each part lists the PTQ wrench it fits, from PTQ0.5 up to PTQ8.

The reaction arm length is 8.23 inches. The reaction arm description is Frog Nut Tool.

Specifications at a glance

These figures come from the Snap-on listing for PTQ8-FROG. Values marked “calculated” are unit conversions we added for convenience.

How the reaction arm accessory works

When a PTQ wrench turns a bolt, its gearbox pushes the tool body the other way. The reaction arm sits on the front of the tool and stops that turn. So the arm presses against a fixed point while the socket turns.

First, you fit the arm and the socket to the wrench. Next, you place the socket on the nut and swing the arm onto a solid stop. Then you start the tool with both hands clear of the arm.

Key features of the reaction arm accessory PTQ8-FROG

The details below explain how length, offset, and shape change the way an arm reacts. They also show what to check before you add a new arm to your PTQ kit.

• Fits Snap-on PTQ wrenches. Every part lists the PTQ wrench it suits, from PTQ0.5 and PTQ1 up to PTQ3, PTQ5, and PTQ8. So you can match the arm to the tool you already run.
• Short, long, and rotatable arms. Short arms ship with some wrenches, while long and rotatable arms add reach and angle. In addition, a rotatable arm lets you set the contact point without moving the tool.
• Listed lengths and offsets. Snap-on lists arm lengths from 3.3 to 11 inches and offsets up to 5.26 inches. Therefore, you can check the reach on paper before you take the tool to the joint.
• No-offset ALCO arms. ALCO arms come in 7, 9, and 11 inch lengths with no offset. As a result, they reach straight out to a stop that sits in line with the tool.
• Twin tool arm option. The twin tool arm for the PTQ0.5 has an adjustable length of 6.75 to 8.75 inches. That range lets you fine-tune the reach to suit your bolt spacing.
• Wheel gun extension kit. One kit pairs a 12 inch wheel gun extension with a reaction fixture for the PTQ0.5. So the tool can reach recessed wheel nuts and still hold a firm reaction.

Typical applications

A reaction arm decides where a pneumatic wrench pushes back on the job. The tasks below are the most common uses we see from buyers in Vietnam. Each one depends on a solid, nearby stop.

• Flange bolts on pipe work. Flange rings have many bolts close together, so the next nut makes a handy stop. For example, an offset arm can rest on the neighboring nut while you torque each bolt.
• Truck and bus wheel nuts. Heavy vehicle wheel nuts sit deep inside the rim and need high torque. Therefore, the wheel gun extension and reaction fixture help a PTQ0.5 reach and react safely.
• Structural steel connections. Steel frames use large bolts on beams and columns at height. In addition, a long arm reaches a solid edge, so the crew does not need extra fixtures.
• Wind tower and generator bolts. Tower flanges and generator bases need high, repeatable torque on many bolts. So crews pair a PTQ wrench with the right arm and move from bolt to bolt quickly.
• Mining and earthmoving equipment. Track frames, buckets, and slewing rings use big fasteners in tight spaces. A rotatable or offset arm lets the tool react on the frame without hitting nearby parts.
• Rail and heavy plant maintenance. Rail and heavy plant crews often torque large nuts in fixed patterns. That is why a set reaction part, such as the frog nut tool, can speed up repeat work.

Industries that use the reaction arm accessory PTQ8-FROG

Reaction arms matter wherever crews run pneumatic torque wrenches on large bolts. The industries below use them on heavy joints every week. Many of these teams also work on FDI sites across Vietnam.

• Oil, gas, and petrochemical. Refineries and gas plants torque flange bolts during each shutdown. In Vietnam, coastal plant crews use offset arms to work bolt by bolt around each flange.
• Power and wind energy. Wind farms in the Mekong Delta and central Vietnam need high torque on tower flanges. Therefore, service teams use long or rotatable arms that react on the next bolt.
• Heavy vehicle fleets. Bus and truck fleets torque large wheel nuts every day. So depots near Hanoi and Ho Chi Minh City use the wheel gun extension kit for safer work.
• Mining and construction. Excavators, crushers, and cranes carry large bolts on frames and slewing rings. In addition, contractors in Vietnam use reaction arms to keep high torque away from the operator.
• Steel structure fabrication. Steel structure builders in Bac Ninh and Dong Nai tighten many large frame bolts. A long arm lets the PTQ wrench react on a beam edge without extra jigs.
• Rail maintenance. Rail track and rolling stock work uses heavy nuts in repeat patterns. For example, crews can use a set reaction tool to speed up each joint on the line.

Reaction arm accessory PTQ8-FROG compared with similar brands

Before you buy, it helps to compare how each pneumatic system handles reaction. The arm must fit the tool body, so the brand of wrench decides most of the choice. Here is how the reaction arm accessory PTQ8-FROG compares with other systems.

Choose the wrench system first, then pick arms that reach the stops on your joints. Snap-on arms suit PTQ tools from PTQ0.5 to PTQ8. Meanwhile, other brands need their own parts, so confirm current specs with each maker. Specifications change over time, so confirm current data with each maker before you decide.

Choosing the right model

• Start with the PTQ model on the tool label. Each arm lists its matching wrench, so a PTQ3 arm will not suit a PTQ8 tool.
• Measure the distance from the bolt to the nearest solid stop. Then pick an arm length and offset that reach that point without strain.
• Choose a rotatable arm when your joints vary from job to job. It lets you change the contact angle without buying a new arm each time.
• Pick a no-offset ALCO arm when the stop sits straight out from the socket. That way, the reaction load stays close to the tool center line.
• Check whether your wrench already includes a short arm. Some PTQ wrenches ship with one, so you may only need a long or rotatable arm.
• Plan special parts for repeat jobs, such as wheel nuts or set rail tasks. For example, the wheel gun extension kit suits deep-set wheel nuts.

For other sizes in the same range, compare Rotatable Reaction Arm – PTQ5-03R, ALCO Reaction Arm – PTQ1-ALC7, Rotatable Reaction Arm – PTQ8-03R, Long Reaction Arm – PTQ5-03L. Also browse the full Snap-on torque tools shop for handles, testers and adapters.

Care, storage and calibration

• Store each arm on a rack or in the tool case after use. Also keep the spline or mounting face clean, because dirt can stop the arm from seating fully.
• Wipe off grease, dust, and grit after each job with a dry cloth. Then check the arm for cracks, bends, or worn contact faces before the next shift.
• ISO 6789 covers hand tools, so check the PTQ wrench on a set interval, often 12 months. We can arrange recalibration through an accredited laboratory.
• Never use an arm on a wrench larger than the one it lists. Overload can bend the arm, so retire any part that shows a bend or crack.
• Pack arms in padded cases for transport between sites. In addition, keep them dry during the humid season so the finish stays free of rust.
