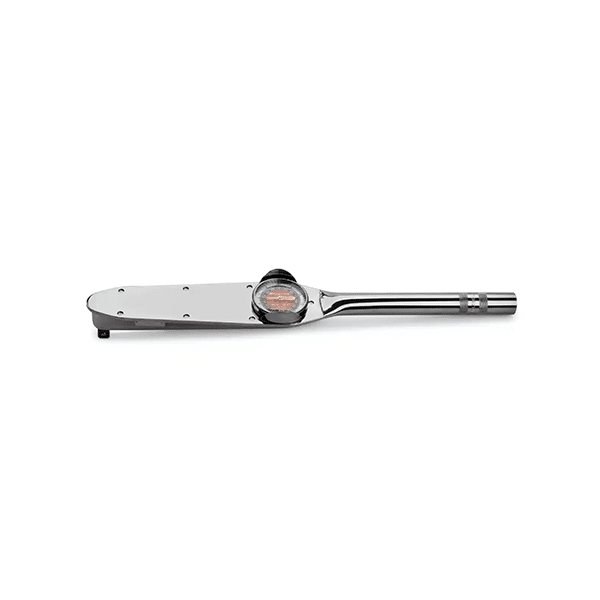

TORQOMETER® U.S./ Metric Basic – TEC803

The dial torque wrench TEC803 belongs to the Snap-on TORQOMETER® US/metric dial torque wrenches range, and Lost in HCM supplies it to workshops and factories across Vietnam. The metric range is 110 kg•m. The width, inches is 3-9/16 (91) mm.

Dial torque wrench TEC803 overview

Quality teams often choose a dial wrench when they must check a joint, not just tighten it. The dial torque wrench TEC803 fits that role, because the needle shows the full torque reading. As a result, you can audit fasteners and record real values.

Most models ship with a Snap-on storage case such as PB9, PB39, PBR5, or PB8A. Also, most listings carry a one-year Snap-on Repair Center warranty. Lost in HCM supplies these wrenches to FDI plants with CO/CQ papers and a VAT e-invoice.

Snap-on lists the country of origin as USA. The us range is 800 ft-lb. The model is Basic.

The length is 66-13/16 inches. The head depth is 2-1/32 inches. The square drive is 1 inches.

The us increments is 25 ft-lb.

Specifications at a glance

These figures come from the Snap-on listing for TEC803. Values marked “calculated” are unit conversions we added for convenience.

How the dial torque wrench works

A dial torque wrench uses a beam that bends a tiny amount as you pull the handle. Inside, a gear train turns that small bend into needle travel on the dial. So the needle points to the torque on the fastener at every moment.

First, you zero the dial and fit the socket to the square drive. Next, you pull smoothly on the handle and watch the needle. Finally, you stop when the needle reaches the spec, then release the load slowly.

Key features of the dial torque wrench TEC803

The details below explain why dial wrenches remain a quality tool in many plants. They also show what to check before you add a new model to your torque program.

• Dual US and metric scale. Each dial carries a US scale in ft-lb or in-lb plus a metric scale in kg·cm or kg·m. Therefore, you can work from US, Japanese, or European specs without a conversion chart.
• Live needle reading. The needle moves as torque builds, so you see the value at every point of the pull. As a result, you can spot a stripped thread or a seized bolt before damage spreads.
• Follow-up peak pointer. Follow-up models add a second pointer that stays at the highest reading. So you can read the final value after the pull, even when the dial faces away from you.
• Light Signal option. Light Signal models give a light cue at the value you set on the dial. In addition, this helps in loud or crowded work areas where watching a needle is hard.
• Standard 2% accuracy class. Snap-on lists this family in its standard 2% accuracy class for TORQOMETER® wrenches. That gives quality teams a clear figure to match against their own torque tolerance.
• Wide drive and range spread. Square drives run from 1/4 inch to 1-1/2 inch, while ranges climb from 15 in-lb to 3,000 ft-lb. Because of this, one family covers small fasteners and large flange bolts.

Typical applications

These wrenches solve one problem well: showing torque as it builds on the fastener. Below are typical jobs where that matters, from line audits to large flange bolts. Each one also rewards a clear and steady reading.

• Torque audits on finished joints. Quality inspectors use a dial wrench to check torque on joints that a power tool already tightened. Because the needle shows the full reading, they can log the real value for each audit.
• Production line spot checks. Line leaders check sample fasteners each shift to confirm that tools still hold their set values. For example, a Follow-up model keeps the peak reading so the checker can note it later.
• Engine and gearbox assembly. Head bolts, bearing caps, and gearbox covers need steady torque in several passes. So a live dial helps technicians pull smoothly and stop right at the spec.
• Large flange and base bolts. The big 3/4 inch, 1 inch, and 1-1/2 inch models suit flange, pump, and machine base bolts. In addition, their long handles give the leverage that high ranges need.
• Small electrical fasteners. The in-lb models suit terminal screws, sensor mounts, and panel hardware in control cabinets. Meanwhile, the kg·cm scale matches the units on many Japanese equipment manuals.
• Breakaway and loosening checks. Some teams read the torque needed to start turning a tight fastener. That way, the dial helps them judge whether a joint held its clamp load in service.

Industries that use the dial torque wrench TEC803

Dial wrenches matter wherever a team must see and record real torque, not just reach a set value. The industries below rely on them every working day. Many of these teams work in FDI plants across Vietnam.

• Automotive manufacturing. Car and motorbike plants in Vietnam run torque audits on safety joints every shift. Therefore, many FDI quality teams keep dial wrenches beside the line to check and record real values.
• Electronics and electrical. Electronics plants in Bac Ninh and Hai Phong torque small screws on fixtures, panels, and cabinets. The in-lb and kg·cm models suit that work, because their scales read fine values clearly.
• Heavy equipment and machinery. Excavators, cranes, and presses use large bolts on frames, slewing rings, and bases. So service crews across Vietnam use the 1 inch and 1-1/2 inch models for those high-torque joints.
• Energy and power plants. Power plants torque flange bolts on pumps, valves, and turbine casings during each outage. In addition, a dial reading gives crews a clear value to note on the work order.
• Aviation maintenance. MRO teams at Vietnamese airports follow strict torque values from the aircraft maintenance manual. Meanwhile, a dual scale helps when manuals and local specs use different units.
• Metalworking and fabrication. Steel structure and machine builders in Dong Nai and Binh Duong tighten base and frame bolts daily. For example, their QC staff use dial wrenches to confirm torque before shipping a machine.

Dial torque wrench TEC803 compared with similar brands

Several makers still build dial torque wrenches for audit and quality work. Each one uses its own dial layout, range split, and service setup. The rows below show where the dial torque wrench TEC803 sits among common options in Vietnam.

If your plant reads both US and metric specs, a dual-scale TORQOMETER® saves a conversion step. In addition, the Follow-up and Light Signal styles cover audit and noisy-shop needs. Even so, confirm current specs with each maker before you compare lines. Specifications change over time, so confirm current data with each maker before you decide.

Choosing the right model

• Pick a range that puts your target torque in the upper part of the dial. Readings near the very low end are harder to judge, so leave some margin.
• Choose a Follow-up model when you must read the peak after the pull. It suits audits where the dial faces away from the operator.
• Consider a Light Signal model for loud or crowded areas. Then the operator gets a light cue instead of watching the needle the whole time.
• Match the square drive to the sockets you already own. For example, a 3/4 inch model avoids an adapter on heavy sockets and keeps the reading clean.
• Check which metric unit your specs use before ordering. Some models read kg·cm while larger ones read kg·m, so pick the scale that fits your manuals.
• Plan for handle length on the large models, because some exceed 40 inches. Measure the space around the joint so the operator can pull smoothly.

For other sizes in the same range, compare TORQOMETER® U.S./ Metric Follow-up – TEC2005FU, TORQOMETER® U.S./ Metric Follow-up (with Chart) – TEC803FUC, TORQOMETER® U.S./ Metric Follow-up (with Chart) – TEC3005FUC, TORQOMETER® U.S./ Metric Follow-up – TEC12FUA. Also browse the full Snap-on torque tools shop for handles, testers and adapters.

Care, storage and calibration

• Store the wrench in its Snap-on case with the dial facing up. Also keep it away from heavy tools that could crack the glass or bend the pointer.
• Wipe oil and dust off the dial face and handle after each shift. However, never spray solvent into the dial, because it can reach the gear train.
• Have the wrench calibrated every 12 months or 5,000 cycles, as ISO 6789-1:2017 recommends. We can arrange recalibration through an accredited laboratory.
• Never pull past the top of the scale, and never use the wrench as a breaker bar. Overload can bend the beam, so the needle no longer reads true.
• Pack the wrench in its case for transport between sites. In addition, keep it dry during the humid season so the dial stays clear and free of fog.
