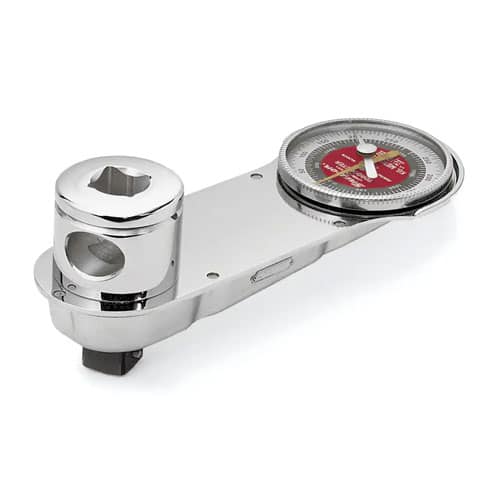

TORQOMETER® U.S./ Metric Follow-up T-Handle (with Chart) TEXC3005TFUC

The T-handle torque tool TEXC3005TFUC belongs to the Snap-on T-handle Torqometer® dial torque wrenches range, and Lost in HCM supplies it to workshops and factories across Vietnam. The metric range is 400 kg•m. The width, inches is 5-1/8 (130) mm.

T-handle torque tool TEXC3005TFUC overview

Large flange, track, and frame bolts need more torque than a standard click wrench can give. The T-handle torque tool TEXC3005TFUC fits that job, because the T-handle Torqometer® line is built for high loads. It also gives a clear dial reading instead of a click.

Snap-on offers two model types in this line. First, Follow-up models keep a pointer at the peak value after you release the load. Next, Light Signal models show a light when you reach the set value. Both types read torque in clockwise and counterclockwise directions.

Snap-on lists the country of origin as USA. The optional extension handle length is 66 inches. The us increments is 100 ft-lb.

The asme®/ansi® is B107.14M-1994. The input drive female square is 1-1/2 inches. The model is Follow-up.

The optional t bar length is 18 inches.

Specifications at a glance

The table below follows the Snap-on data for TEXC3005TFUC. In addition, we converted imperial torque values to N·m where Snap-on lists none.

How the T-handle torque tool works

Follow-up models carry a second pointer that the main pointer pushes along the scale. When you release the handle, that pointer stays at the highest value. As a result, you can read the peak torque after the pull, even from an awkward position.

Light Signal models work in a different way. First, you set the target value on the dial. Then you pull steadily until the light comes on, and you stop right away. This setup suits repeat bolts where the operator cannot watch the dial closely.

Key features of the T-handle torque tool TEXC3005TFUC

Every tool in this family shares the same heavy-duty dial design, from the square drives to the optional handles. Here are the features that matter most when you compare options.

• Dial reading in both directions. The dial reads clockwise and counterclockwise across the full scale. Therefore, one wrench body handles right-hand and left-hand threads. It also suits break-away checks on bolts that are already tight.
• Guaranteed ±2% accuracy. Snap-on states accuracy within ±2% of reading from 20% of full scale to full scale. That tight band matters on large joints, because a small percent error equals many ft-lb at high loads.
• Follow-up peak pointer. Follow-up models hold a pointer at the highest torque reached during the pull. So the operator can finish the pull first and then read the value, which helps in dark or cramped spaces.
• Light Signal option. Light Signal models show a light when the applied torque reaches the set value. In addition, this signal lets the operator focus on a smooth pull instead of staring at the dial.
• Capacities up to 4,000 ft-lb. Wrench bodies in this family run from 600 ft-lb up to 4,000 ft-lb. Meanwhile, the metric scales on combination models run from 80 kg•m up to 550 kg•m.
• Heavy square drive sizes. Output drives come in 3/4, 1, and 1-1/2 inch male squares, with matching female input squares. As a result, the bodies accept heavy sockets and the T-bars or handles sized for each model.

Snap-on data sheet notes

Snap-on also lists these details for TEXC3005TFUC:

• Guaranteed Accuracy: Within ± 2% of the reading from 20% of full scale to full scale clockwise and counterclockwise.

Typical applications

These tools solve one problem well: reading high torque on big fasteners by hand. Below are typical jobs where that matters, from track bolts to flange joints. Each one also rewards a clear dial value.

• Heavy equipment track bolts. Excavator and dozer track shoes use large bolts with high torque specs. A T-handle Torqometer® with an extension handle gives crews the leverage and the reading they need in one setup.
• Large flange and pipe joints. Pipe flanges on pumps, valves, and pressure lines need even torque across many bolts. Therefore, a dial wrench with a peak pointer helps crews record each value during a pattern sequence.
• Gearbox and press assembly. Big gearboxes, presses, and mill stands use bolts far beyond normal hand tool ranges. The 1-1/2 inch drive models suit these joints, because their scales reach 3,000 or 4,000 ft-lb.
• Torque audits on tight bolts. Quality teams often check bolts that are already tightened to confirm the spec. Follow-up models suit this task, because the peak pointer records the value where the bolt starts to turn.
• Wheel and axle fasteners. Mining trucks, cranes, and heavy trailers use large wheel nuts and axle bolts. In addition, the dial reading lets the technician see torque build up as the nut seats.
• Structural steel connections. Steel frames, towers, and machine bases use high-strength bolts with set torque values. So site crews use these bodies with long extension handles to reach the required torque by hand.

Industries that use the T-handle torque tool TEXC3005TFUC

High-capacity dial wrenches matter wherever large bolts hold heavy machines together. The industries below rely on them during service and shutdowns. Many of these teams also work in FDI plants and project sites across Vietnam.

• Mining and quarrying. Haul trucks, loaders, and crushers use very large bolts that loosen under heavy vibration. Mines in Quang Ninh and quarries across Vietnam use high-capacity dial wrenches to keep these joints at spec.
• Heavy equipment service. Dealers and rental fleets service excavators, cranes, and forklifts with inch and metric hardware. In Vietnam, many FDI fleet owners also ask for recorded torque values, so dial readings help them pass audits.
• Power generation. Thermal, hydro, and gas power plants use large flange and casing bolts on turbines and pumps. Therefore, maintenance crews in Vietnam use T-handle dial wrenches during outages to tighten these joints evenly.
• Shipbuilding and marine. Shipyards bolt engines, shaft couplings, and deck machinery with heavy fasteners. Yards in Hai Phong and Khanh Hoa also need tools that read both ways, because some fittings use left-hand threads.
• Steel and heavy fabrication. Steel mills and fabrication shops assemble rolling stands, frames, and large fixtures. In industrial parks across Ba Ria-Vung Tau and Hai Phong, these teams use high-capacity dial wrenches for critical joints.
• Oil, gas, and petrochemical. Refineries and gas plants tighten many large flanges during each shutdown. As a result, crews at sites such as Dung Quat rely on accurate high-torque tools to prevent leaks.

T-handle torque tool TEXC3005TFUC compared with similar brands

Several makers sell dial or high-capacity torque tools for heavy bolts. Each one uses its own reading method, drive sizes, and accessories. The comparison below shows where the T-handle torque tool TEXC3005TFUC fits among common choices for large joints.

If your team wants a direct dial reading on heavy bolts, a T-handle Torqometer® is a simple choice. It reads both ways and holds a known accuracy band. Even so, confirm current specs with each maker before you compare models. Specifications change over time, so confirm current data with each maker before you decide.

Choosing the right model

• Start with the highest torque spec on your bolt list. Then pick a body where that value sits well inside the scale, since accuracy applies from 20% of full scale.
• Choose between Follow-up and Light Signal models based on the job. Follow-up suits audits and peak readings, while Light Signal suits repeat bolts at one target value.
• Pick a combination TEXC model if your service manuals list kg•m values. Otherwise, a TEX model with a ft-lb scale keeps the dial simple for US-based specs.
• Match the output drive to your heavy sockets before ordering. For example, 1-1/2 inch drive bodies need 1-1/2 inch sockets, so check what your crib already holds.
• Order the matching T-bar or extension handle with each body. Each product page lists the optional handle part number, so you can confirm the fit before you buy.
• Measure the space around the joint before you choose a handle. A T-bar suits tight bays, while a long extension handle gives more leverage on open floors.

For other sizes in the same range, compare 18" T-Bar 82TQP, TORQOMETER® U.S. Light Signal T-Handle TEX1503TL, 31" Extension 85TQP, TORQOMETER® U.S./ Metric Light Signal T-Handle TEXC602TLA. Also browse the full Snap-on torque tools shop for handles, testers and adapters.

Care, storage and calibration

• Store each body in a dry drawer or case with the dial facing up. Also keep heavy tools off the dial glass, because a cracked lens lets dust reach the pointer.
• Wipe oil, grease, and grit off the body and drives after each job. Then check the square drives for wear, since a worn drive can let the socket slip.
• Send each wrench body for calibration every 12 months or 5,000 cycles, as ISO 6789-1:2017 recommends. We can arrange recalibration through an accredited laboratory.
• Never pull past the full scale of the dial or use a cheater bar. Overload can bend the measuring element, so book a calibration check after any hard shock.
• Pack the body, T-bar, and handle in a padded case between sites. In addition, keep them dry during the humid season so the drives and finish stay clean.

Frequently asked questions

Request a quote

Send us the part number, quantity and delivery site, and we will reply with a quote. You can request a quote online or call 0902 327 669.
