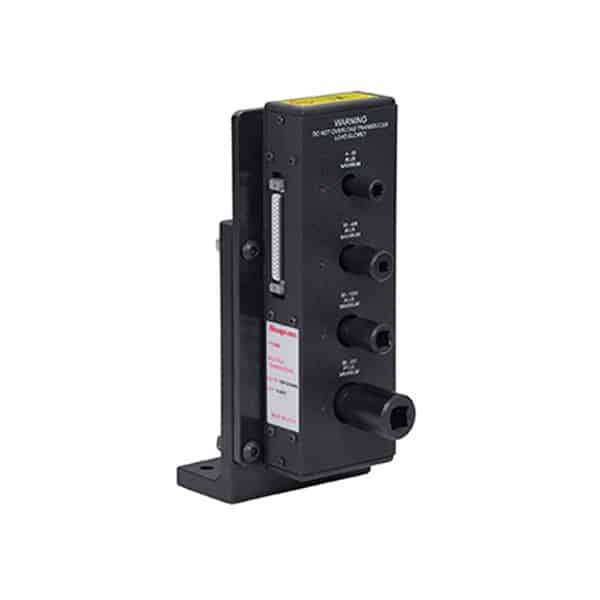

1/4″, 3/8″ and 1/2″ Drive 4-in-1 Transducer – TTC400

The torque testing device TTC400 belongs to the Snap-on Versatest™ torque testing system range, and Lost in HCM supplies it to workshops and factories across Vietnam. Because it has a 1/2 in square drive, it pairs with standard 1/2 in sockets. Snap-on lists the country of origin as USA.

Torque testing device TTC400 overview

A torque tester only helps when it covers the tools your plant actually uses. The torque testing device TTC400 fits a system that reaches from small drivers to large wrenches. In short, one bench can serve the line, the crib, and the quality room.

Snap-on lists transducers from 5 in-oz up to 2,000 ft-lb for the Versatest™ monitor. Then the VERSA600LDR2 loader handles dial, micrometer, beam, and electronic wrenches up to 600 ft-lb. Most items list a one-year Snap-on Repair Center warranty.

The bench top mounting bracket is N/A. The range is 4 in-lb–250 ft-lb. The square drive is 1/4, 3/8 and 1/2" inches.

Specifications at a glance

The table below follows the Snap-on data for TTC400. In addition, we converted imperial torque values to N·m where Snap-on lists none.

How the torque testing device works

A Versatest™ bench has three main parts: a transducer, a monitor, and a loader. First, you fit the wrench or driver to a TTC transducer through the right adapter. Next, the loader applies a smooth pull, while the monitor reads the signal.

The monitor samples the transducer 2,000 times per second and updates the display five times per second. So it can catch the peak of a click or a power tool pulse. Then you compare the reading with the tool's set value and its tolerance.

Key features of the torque testing device TTC400

Every item in this family works as part of one Versatest™ bench, from the monitor to the loader. Here are the features that matter most when you compare test systems.

• Accuracy of ±0.25% of reading. Snap-on lists ±0.25% of the indicated value, clockwise and counterclockwise, from 10 to 100% of full scale. That level suits checking click, dial, and electronic torque tools on a bench.
• Four test modes. The monitor offers Track, Peak Hold, First Peak, and Power Tool modes. Therefore, one bench can test hand wrenches, click wrenches, and power tools with the right method for each.
• Smart plug-and-play transducers. Smart TTC transducers plug straight into the monitor for quick setup. In addition, each one is serialized and ships with a certificate of calibration traceable to NIST.
• Data storage with time stamp. The monitor stores up to 3,000 readings with date and time. So you can review results later or download them to a PC for audit records.
• Built-in statistical analysis. The monitor calculates max, min, range, mean, sigma, Cp, and Cpk. As a result, quality engineers can run capability checks without a separate software package.
• Seven torque units. You can read results in ft-lb, in-lb, in-oz, N•m, dN•m, kg•m, and kg•cm. That helps mixed US, Japanese, and European tool fleets in one plant.

Snap-on data sheet notes

In addition, the Snap-on data sheet for TTC400 notes:

• All TTC series transducers include the correct adaptor for the indicated torque range.
• Range is 4-50 in-lb (minimum) to 20-250 ft-lb (max).

Typical applications

These devices solve one problem well: proving that a torque tool still reads correctly. Below are typical jobs where that matters most. Each one also adds data to your quality records.

• In-house torque wrench checks. Quality teams check click and dial wrenches before a shift or a critical job. With a loader and transducer, each check follows the same smooth pull every time.
• Power tool torque testing. Power Tool mode helps teams check nutrunners and pulse tools on the line. Therefore, you can confirm that a tool still delivers its set torque after maintenance.
• Torque screwdriver verification. The Versatest™ monitor also loads torque screwdrivers with the right transducer. So electronics lines can verify small drivers on the same bench as their wrenches.
• Process capability studies. Built-in Cp and Cpk help engineers judge whether a joint process stays inside its limits. In addition, stored data supports reports for customer and ISO audits.
• Incoming tool inspection. New torque tools should pass a check before they enter the tool crib. A Versatest™ bench helps receiving teams spot a faulty tool on day one.
• Training and skill checks. Trainers can show new technicians how a click feels at the right value. Meanwhile, Peak Hold mode records each pull, so the trainer sees how close each try lands.

Industries that use the torque testing device TTC400

In-house torque testing matters wherever a plant runs many torque tools and must prove they read correctly. The industries below use bench testers every day. Many of these teams also work in FDI plants across Vietnam.

• Automotive assembly. Car and motorbike plants run hundreds of torque tools on each line. In Vietnam, many FDI assembly plants check those tools in-house, so a Versatest™ bench saves time and audit stress.
• Electronics manufacturing. Electronics plants in Bac Ninh and Hai Phong rely on small torque drivers and power tools. Therefore, a tester with low-range transducers helps quality teams verify them before each run.
• Aviation maintenance. Aircraft maintenance teams must prove that every torque tool reads correctly. So MRO shops at Vietnamese airports use bench testers to check wrenches between formal calibration dates.
• Heavy equipment maintenance. Service teams for cranes, trucks, and mining gear use large torque wrenches. For this reason, the 600 ft-lb loader and larger transducers help them check those tools in-house.
• Factory tool cribs. Plants in Binh Duong, Dong Nai, and Long An keep large tool cribs for maintenance. A working tester helps crib staff catch out-of-tolerance tools before they reach the floor.
• Quality and metrology rooms. Many FDI plants run their own quality rooms for gauges and tools. Because the monitor stores and analyzes data, those teams can add torque checks to their routine.

Torque testing device TTC400 compared with similar brands

Several makers sell torque testers, transducers, and loaders for in-house checks. Each system uses its own sensors, cables, and software, so parts rarely swap. The comparison below shows where the torque testing device TTC400 fits among the common choices.

Choose the tester that matches your tool range first, then compare accuracy, modes, and data features. Versatest™ suits plants with mixed tools up to large wrenches. Meanwhile, low-torque lines may weigh other options, so confirm current specs with each maker. Specifications change over time, so confirm current data with each maker before you decide.

Choosing the right model

• List the torque range of every tool you plan to test. Then choose transducers that cover that range, because each one has its own limits.
• Start with the VERSATEST600 complete system if you have no bench yet. It includes the monitor, the loader, the TTC400, a bracket, and a 600 ft-lb transducer.
• Pick the TTC400 when most of your tools use 1/4, 3/8, or 1/2 inch drives. Its range of 4 in-lb to 250 ft-lb covers many common jobs.
• Check whether you test power tools as well as hand wrenches. If so, plan for Power Tool mode and a transducer that fits the tool output.
• Plan how you will store and report results. For example, the RS232 ports let you send data to a PC or a printer for audit files.
• Read the warranty line on each product page. Most items list a one-year Snap-on Repair Center term from the date of purchase.

For other sizes in the same range, compare Electronic Torque Tester/ Calibrator – VERSATEST, Versatest™ Mechanical Torque Loader – VERSA600LDR2, Versatest™ Complete Electronic Torque Calibration System – VERSATEST600. Also browse the full Snap-on torque tools shop for handles, testers and adapters.

Care, storage and calibration

• Keep the monitor and transducers in a clean, dry room between 10 and 32 °C, as Snap-on lists. Then the readings stay stable from one test to the next.
• Wipe the loader and transducer drives with a dry cloth after use. Also keep oil and dust off cable plugs, because dirt can affect the signal.
• Plan calibration for each transducer on a set interval. Also keep wrenches on the ISO 6789-1:2017 cycle of 12 months. We can arrange recalibration through an accredited laboratory.
• Never load a tool above the range of the transducer in use. Too much load can damage the sensor, so check the range before every test.
• Pack the monitor and transducers in padded cases when you move between sites. In addition, keep them dry during the humid season so the electronics stay safe.
