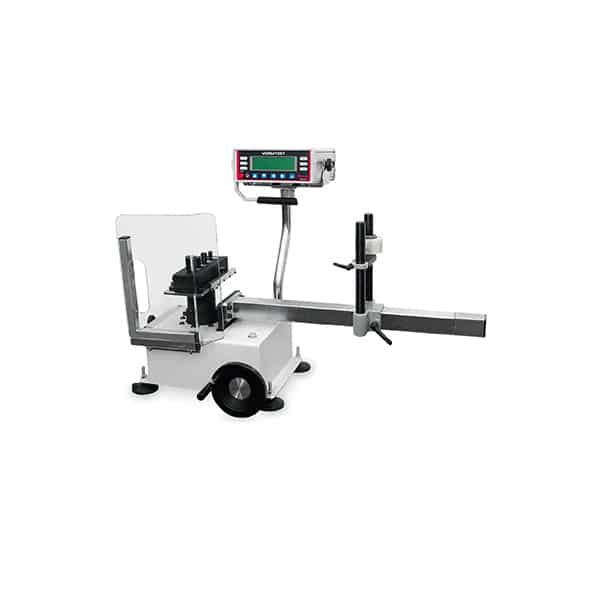

Versatest™ Mechanical Torque Loader – VERSA600LDR2

The torque testing device VERSA600LDR2 belongs to the Snap-on Versatest™ torque testing system range, and Lost in HCM supplies it to workshops and factories across Vietnam. Snap-on lists the country of origin as USA. The maximum capacity is 600 ft-lb.

Torque testing device VERSA600LDR2 overview

Plants with many torque tools need a fast way to check them between formal calibrations. The torque testing device VERSA600LDR2 helps because each part of the Versatest™ system works as one bench. It also stores results, so audit records stay simple.

For example, the monitor saves up to 3,000 readings with a date and time stamp. In addition, it offers four modes: Track, Peak Hold, First Peak, and Power Tool. Lost in HCM supplies the system to FDI plants with CO/CQ papers and a VAT e-invoice.

The range is 15 in-oz–600 ft-lb.

Specifications at a glance

These figures come from the Snap-on listing for VERSA600LDR2. Values marked “calculated” are unit conversions we added for convenience.

How the torque testing device works

Each smart transducer plugs straight into the monitor, so setup stays quick and simple. Snap-on calls this plug-and-play, and each transducer comes serialized with a NIST-traceable certificate. Therefore, you know which sensor produced every stored result.

The monitor also runs statistics on the stored data, such as mean, range, sigma, Cp, and Cpk. As a result, you can judge a tool or a process, not just one reading. You can also send data through two RS232 ports to a printer or a PC.

Key features of the torque testing device VERSA600LDR2

The details below explain how the system measures, stores, and analyzes torque data. They also show what to check before you add a new transducer or loader to your bench.

• Accuracy of ±0.25% of reading. Snap-on lists ±0.25% of the indicated value, clockwise and counterclockwise, from 10 to 100% of full scale. That level suits checking click, dial, and electronic torque tools on a bench.
• Four test modes. The monitor offers Track, Peak Hold, First Peak, and Power Tool modes. Therefore, one bench can test hand wrenches, click wrenches, and power tools with the right method for each.
• Smart plug-and-play transducers. Smart TTC transducers plug straight into the monitor for quick setup. In addition, each one is serialized and ships with a certificate of calibration traceable to NIST.
• Data storage with time stamp. The monitor stores up to 3,000 readings with date and time. So you can review results later or download them to a PC for audit records.
• Built-in statistical analysis. The monitor calculates max, min, range, mean, sigma, Cp, and Cpk. As a result, quality engineers can run capability checks without a separate software package.
• Seven torque units. You can read results in ft-lb, in-lb, in-oz, N•m, dN•m, kg•m, and kg•cm. That helps mixed US, Japanese, and European tool fleets in one plant.

Snap-on data sheet notes

Snap-on also lists these details for VERSA600LDR2:

• Unit will load dial, micrometer, beam and electronic torque wrenches.
• Maximum capacity of 600 ft-lb.
• Use with any TTC series transducer from 15 in-oz to 600 ft-lb.

Typical applications

A torque testing device earns its place when it catches a bad tool before it reaches a joint. The tasks below are the most common uses we see from buyers.

• In-house torque wrench checks. Quality teams check click and dial wrenches before a shift or a critical job. With a loader and transducer, each check follows the same smooth pull every time.
• Power tool torque testing. Power Tool mode helps teams check nutrunners and pulse tools on the line. Therefore, you can confirm that a tool still delivers its set torque after maintenance.
• Torque screwdriver verification. The Versatest™ monitor also loads torque screwdrivers with the right transducer. So electronics lines can verify small drivers on the same bench as their wrenches.
• Process capability studies. Built-in Cp and Cpk help engineers judge whether a joint process stays inside its limits. In addition, stored data supports reports for customer and ISO audits.
• Incoming tool inspection. New torque tools should pass a check before they enter the tool crib. A Versatest™ bench helps receiving teams spot a faulty tool on day one.
• Training and skill checks. Trainers can show new technicians how a click feels at the right value. Meanwhile, Peak Hold mode records each pull, so the trainer sees how close each try lands.

Industries that use the torque testing device VERSA600LDR2

In-house torque testing matters wherever a plant runs many torque tools and must prove they read correctly. The industries below use bench testers every day. Many of these teams also work in FDI plants across Vietnam.

• Automotive assembly. Car and motorbike plants run hundreds of torque tools on each line. In Vietnam, many FDI assembly plants check those tools in-house, so a Versatest™ bench saves time and audit stress.
• Electronics manufacturing. Electronics plants in Bac Ninh and Hai Phong rely on small torque drivers and power tools. Therefore, a tester with low-range transducers helps quality teams verify them before each run.
• Aviation maintenance. Aircraft maintenance teams must prove that every torque tool reads correctly. So MRO shops at Vietnamese airports use bench testers to check wrenches between formal calibration dates.
• Heavy equipment maintenance. Service teams for cranes, trucks, and mining gear use large torque wrenches. For this reason, the 600 ft-lb loader and larger transducers help them check those tools in-house.
• Factory tool cribs. Plants in Binh Duong, Dong Nai, and Long An keep large tool cribs for maintenance. A working tester helps crib staff catch out-of-tolerance tools before they reach the floor.
• Quality and metrology rooms. Many FDI plants run their own quality rooms for gauges and tools. Because the monitor stores and analyzes data, those teams can add torque checks to their routine.

Torque testing device VERSA600LDR2 compared with similar brands

Before you buy, it helps to see how the torque testing device VERSA600LDR2 compares with other test systems. However, the key question is not one unit alone. Instead, it is whether the full bench covers your tool range and your audit needs.

Choose the tester that matches your tool range first, then compare accuracy, modes, and data features. Versatest™ suits plants with mixed tools up to large wrenches. Meanwhile, low-torque lines may weigh other options, so confirm current specs with each maker. Specifications change over time, so confirm current data with each maker before you decide.

Choosing the right model

• List the torque range of every tool you plan to test. Then choose transducers that cover that range, because each one has its own limits.
• Start with the VERSATEST600 complete system if you have no bench yet. It includes the monitor, the loader, the TTC400, a bracket, and a 600 ft-lb transducer.
• Pick the TTC400 when most of your tools use 1/4, 3/8, or 1/2 inch drives. Its range of 4 in-lb to 250 ft-lb covers many common jobs.
• Check whether you test power tools as well as hand wrenches. If so, plan for Power Tool mode and a transducer that fits the tool output.
• Plan how you will store and report results. For example, the RS232 ports let you send data to a PC or a printer for audit files.
• Read the warranty line on each product page. Most items list a one-year Snap-on Repair Center term from the date of purchase.

For other sizes in the same range, compare 1/4", 3/8" and 1/2" Drive 4-in-1 Transducer – TTC400, Versatest™ Complete Electronic Torque Calibration System – VERSATEST600, Electronic Torque Tester/ Calibrator – VERSATEST. Also browse the full Snap-on torque tools shop for handles, testers and adapters.

Care, storage and calibration

• Keep the monitor and transducers in a clean, dry room between 10 and 32 °C, as Snap-on lists. Then the readings stay stable from one test to the next.
• Wipe the loader and transducer drives with a dry cloth after use. Also keep oil and dust off cable plugs, because dirt can affect the signal.
• Plan calibration for each transducer on a set interval. Also keep wrenches on the ISO 6789-1:2017 cycle of 12 months. We can arrange recalibration through an accredited laboratory.
• Never load a tool above the range of the transducer in use. Too much load can damage the sensor, so check the range before every test.
• Pack the monitor and transducers in padded cases when you move between sites. In addition, keep them dry during the humid season so the electronics stay safe.
