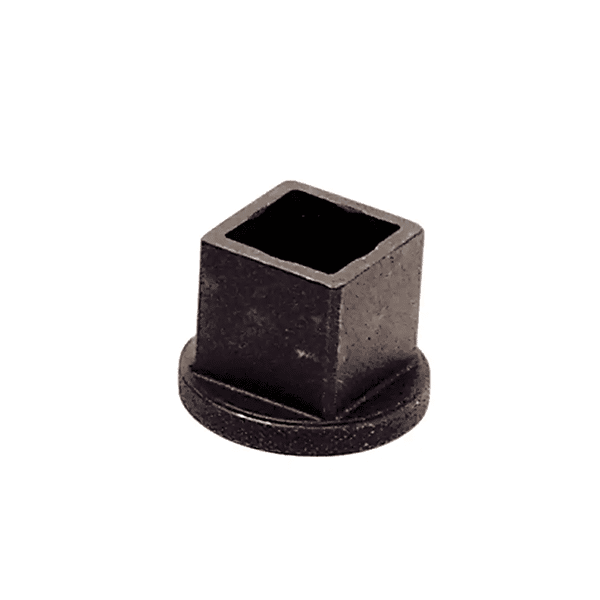

1″ Male x 3/4″ Female Square Drive Reducer – 2000-226-2

The square drive reducer 2000-226-2 belongs to the Snap-on square drive reducers for torque testers range, and Lost in HCM supplies it to workshops and factories across Vietnam. Snap-on lists the country of origin as USA. The description (chart) is 1" x 3/4" Square Drive Reducer.

Square drive reducer 2000-226-2 overview

The square drive reducer 2000-226-2 lets a smaller-drive torque tool connect to a larger square drive. Its male end fits the larger drive, while its female end takes the smaller tool. As a result, one tester or transducer can check more wrench sizes.

Snap-on lists four sizes in this family, all made in the USA. They step down from 1/2 to 3/8, 3/4 to 1/2, 1 to 3/4, and 1-1/4 to 3/4 inch. In addition, Snap-on groups them with its electronic torque tester and calibrator line.

Specifications at a glance

The table below follows the Snap-on data for 2000-226-2. In addition, we converted imperial torque values to N·m where Snap-on lists none.

How the square drive reducer works

A reducer has a male square on one end and a smaller female square on the other. First, you push the male end into the tester or transducer drive. Next, you insert the wrench drive into the female end until it seats fully.

When you pull the wrench, the torque passes through the reducer along the same axis. So the reducer does not change the lever length or the reading. Instead, it simply joins two drive sizes that would not fit together on their own.

Key features of the square drive reducer 2000-226-2

The details below explain why these reducers keep readings honest and fit common drives. They also show what to check before you add a new size to your tester kit.

• Four step-down sizes. The family covers 1/2 to 3/8, 3/4 to 1/2, 1 to 3/4, and 1-1/4 to 3/4 inch. So you can match the common wrench drives to larger tester or transducer drives.
• Male to female design. Each reducer has a male square for the larger drive and a female square for the smaller tool. As a result, the wrench seats directly into the reducer without extra parts.
• In-line torque path. The reducer sits on the drive axis, so it adds no lever length. Therefore, the tester reads the same torque that the wrench applies at the square drive.
• Solid one-piece body. The reducer has no moving parts or springs to wear out. In addition, a simple solid body is easy to clean and inspect before each test run.
• Built for tester use. Snap-on groups these reducers with its electronic torque tester and calibrator line. Because of this, they suit labs and tool cribs that check wrenches in house.
• Large drive support. The 1-1/4 inch male reducer steps down to a 3/4 inch female drive. That way, high-capacity transducers can also accept heavy 3/4 inch drive wrenches.

Typical applications

A square drive reducer earns its place where wrench and tester drives do not match. The tasks below are the most common uses we see from buyers. Each one also rewards a clean, square fit.

• In-house wrench checks. Quality teams check click and digital wrenches between formal calibrations. A reducer lets one tester accept 3/8, 1/2, and 3/4 inch drive wrenches without buying more testers.
• Transducer setup changes. Torque labs swap transducers to match each wrench range under test. Therefore, reducers help connect a smaller-drive wrench to a transducer that carries a larger drive.
• Heavy wrench testing. Large 3/4 inch drive wrenches need a high-capacity transducer for testing. For example, the 1-1/4 by 3/4 inch reducer joins these wrenches to a large transducer drive.
• Tool crib inspections. Tool cribs check wrenches when they come back from the line. In addition, a set of reducers lets one station handle every drive size in the plant.
• Training and demonstrations. Trainers show staff how a click wrench releases on a tester display. So a reducer lets them use the same tester with the small wrenches new staff often use.
• Incoming tool inspection. Some plants check every new wrench before it enters service on the line. Then a reducer lets the receiving team test each wrench quickly, whatever its drive size.

Industries that use the square drive reducer 2000-226-2

Any site that tests its own torque wrenches needs a clean fit between wrench and tester. So these reducers show up in labs, tool cribs, and maintenance shops. Here is how each industry uses them in practice.

• Automotive manufacturing. Car and motorcycle plants in Vinh Phuc and Dong Nai run hundreds of torque wrenches on the line. Therefore, their tool cribs use reducers to test many drive sizes on one station.
• Electronics manufacturing. Electronics plants in Bac Ninh and Thai Nguyen use small 1/4 and 3/8 inch wrenches. So quality teams fit reducers to test these tools on larger transducer drives.
• Aviation maintenance. MRO teams at Vietnamese airports must show that each wrench reads within its limit. A tester with reducers also helps them check wrenches between formal calibration dates.
• Heavy equipment service. Dealers that service excavators and trucks use 3/4 inch drive wrenches for large bolts. In addition, the largest reducer lets them test these wrenches on high-capacity transducers.
• Factory maintenance. Plants in Binh Duong and Hai Phong keep their own torque tester in the maintenance shop. Because staff use many drive sizes, a reducer set keeps the tester useful for all of them.
• Energy and power plants. Power plants use large wrenches on flanges and turbine bolts during outages. Meanwhile, reducers let their tool rooms check those wrenches before each outage begins.

Square drive reducer 2000-226-2 compared with similar brands

Before you buy, it helps to see how the square drive reducer 2000-226-2 compares with other drive adapters. However, the reducer itself is a very simple part. Instead, the key question is whether it fits the tester and transducers your team already owns.

Choose reducers that match your tester drive first, then the wrench drives you need to check. A clean square fit matters more than brand alone. Meanwhile, confirm current specs with each maker before you order a full set. Specifications change over time, so confirm current data with each maker before you decide.

Choosing the right model

• Start with the drive size on your tester or transducer. The reducer's male end must match it exactly, or the joint will rock under load.
• List the wrench drives you need to test. Then choose the reducers that step from your tester drive down to each wrench size.
• Keep the test load inside the rating of the smaller drive. For example, a 3/8 inch female end should not see 1/2 inch drive loads.
• Avoid stacking several reducers in a row when one will do. Each joint adds play, so a single step gives a steadier reading.
• Check the warranty line on each product page. The 1-1/4 by 3/4 inch reducer carries one year, while the smaller sizes list none.
• Buy a spare of the size you use most. That way, a worn reducer never stops a calibration session or a line audit.

For other sizes in the same range, compare 1-1/4" Male x 3/4" Female Square Drive Reducer – 2000-0154-18, 1/2" Male x 3/8" Female Square Drive Reducer – 2000-152-3, 3/4" Male x 1/2" Female Square Drive Reducer – 2000-226-3. Also browse the full Snap-on torque tools shop for handles, testers and adapters.

Care, storage and calibration

• Store reducers in a labeled tray next to the tester. Then staff find the right size quickly and the squares stay free of nicks.
• Wipe off oil and dust after each session with a dry cloth. Also check the corners for rounding, because worn squares let the wrench rock.
• Recalibrate the wrenches you check every 12 months or 5,000 cycles, as ISO 6789-1:2017 recommends. We can arrange recalibration through an accredited laboratory.
• Never load a reducer above the rating of its smaller drive. Overload can twist the square, so retire any reducer that shows a bent or cracked end.
• Pack reducers in a case for transport between sites. In addition, keep them dry in the humid season, since rust spoils the fit.

Frequently asked questions

Request a quote

Send us the part number, quantity and delivery site, and we will reply with a quote. You can request a quote online or call 0902 327 669.
