10° Offset Metric Box End Head – QJXBM11A

The offset box end head QJXBM11A is a Snap-on offset box end head that Lost in HCM supplies to workshops and factories across Vietnam. It has a J (0.425") shank, so it fits handles built for that shank size. The center of fastener to retaining pin is QJXBM Series – 2.50".

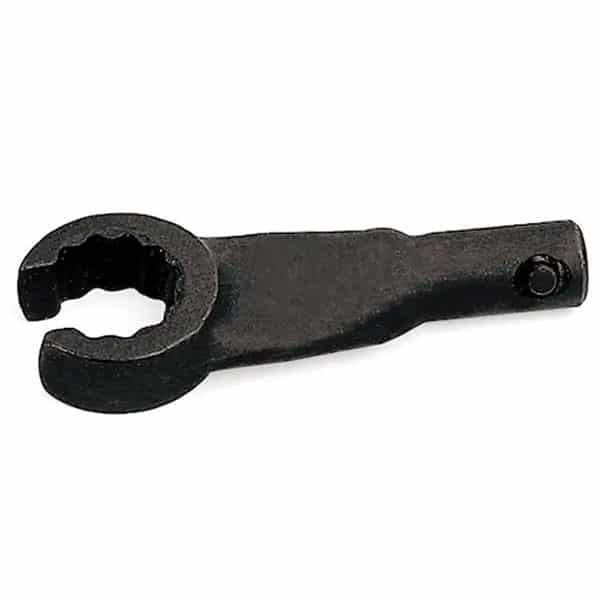

Offset box end head QJXBM11A overview

A closed ring holds a bolt head far better than an open-end jaw. The offset box end head QJXBM11A uses that strength on a calibrated wrench, so you can torque metric fasteners in tight spots. In addition, the 10° offset lifts the handle away from flat surfaces.

Each head lists the distance from the fastener center to the retaining pin. J-shank heads measure 2.50 inches, while Y-shank heads measure 3.00 inches. That figure matters, because the wrench manual uses it to show whether a setting correction applies.

Its maximum recommended working torque is 60 ft-lb, about 81.3 N·m. Snap-on lists the country of origin as USA. The size is 11 mm.

Specifications at a glance

The table below follows the Snap-on data for QJXBM11A. In addition, we converted imperial torque values to N·m where Snap-on lists none.

How the offset box end head works

An interchangeable head torque wrench has a socket at the tip of its tube instead of a fixed ratchet. You push the head shank into that socket until the retaining pin locks it. Then the wrench measures torque through the head, so the click still marks your set value.

The box end head is a closed 12-point ring on a short arm. First, you drop the ring over the bolt head or nut. Next, you pull the handle smoothly until the wrench clicks, and you stop right away.

Key features of the offset box end head QJXBM11A

The details below explain why these heads grip metric bolts well and clear flat surfaces. They also show what to check before you add a new head to your wrench set.

• 10° offset ring design. The ring sits at a 10° angle to the shank, so the handle rides above flat surfaces. As a result, operators keep their knuckles clear when bolts sit flush on a cover or flange.
• Twelve-point metric ring. A closed 12-point ring grips the fastener on all sides and indexes every 30 degrees. Therefore, you can place the handle in more positions than a 6-point ring allows.
• J and Y shank sizes. The family comes in J (0.425 inch) and Y (0.560 inch) shanks. So you can run lighter work on a J-shank wrench and heavier bolts on a Y-shank body.
• Published working torque limits. Snap-on lists 60 ft-lb for the J-shank heads and 160 ft-lb for the Y-shank heads. That limit tells you how far to set the wrench before the head itself risks damage.
• Common metric bolt sizes. J-shank heads cover 11, 12, 13, 14, 16, 18, and 19 mm. In addition, Y-shank heads come in 18 and 24 mm for larger bolts on machines and frames.
• Listed head length. Each head lists the distance from the fastener center to the retaining pin. For example, J-shank heads measure 2.50 inches, which the wrench manual uses for any setting correction.

Typical applications

These heads solve one problem well: torquing a metric bolt in a tight spot with a closed ring. Below are typical jobs where that matters, from flush covers to frame bolts.

• Flush cover and flange bolts. Bolts on flat covers and flanges leave little room for a straight handle. The 10° offset lifts the wrench above the surface, so you can pull cleanly to the click.
• Metric machine assembly. Japanese, Korean, and European machines use metric bolts with set torque values. A box end head on a calibrated wrench gives each bolt the stated value on every unit.
• Engine and gearbox covers. Valve covers, oil pans, and gearbox housings use rows of small metric bolts. Therefore, a J-shank head in 11 to 19 mm sizes suits this work with fine control.
• Bolts with no socket clearance. Some bolts sit under brackets where a socket and extension cannot fit. In those cases, a slim ring head on an interchangeable wrench reaches the fastener from the side.
• Frame and bracket bolts. Larger frame and mounting bolts often use 18 or 24 mm heads. The Y-shank sizes handle these heavier joints, because their listed rating reaches 160 ft-lb.
• Production line quality checks. On assembly lines, a preset interchangeable head wrench with a box end head gives every operator the same result. In addition, the click makes each tightened joint easy to confirm.

Industries that use the offset box end head QJXBM11A

Metric box end heads matter wherever metric bolts must meet a set torque in tight spaces. The industries below rely on them every day. Many of these teams also run FDI plants and service centers across Vietnam.

• Automotive and motorcycle assembly. Assembly plants in Vietnam build cars and motorcycles with metric bolts throughout. For this reason, line teams use preset wrenches with box end heads for joints a socket cannot reach.
• Electronics and machinery plants. FDI plants in Bac Ninh and Hai Phong run metric machines from Japan and Korea. Maintenance crews also use ring heads on calibrated wrenches to keep fixtures and frames at spec.
• Automotive service. Dealers and fleet shops service metric engines, gearboxes, and brakes every day. So technicians use offset ring heads to torque covers and brackets with a documented value.
• Heavy equipment maintenance. Excavators and loaders from Japanese and Korean makers use metric bolts on frames and covers. Therefore, contractors in Vietnam use Y-shank heads for larger bolts in tight spots.
• Factory maintenance. Plants in Binh Duong, Dong Nai, and Long An run pumps, motors, and conveyors with metric fasteners. Meanwhile, maintenance teams need tools that leave a clear torque record for ISO audits.
• Energy and power plants. Turbines, pumps, and switchgear use metric bolts on covers and mounting plates. Power plant crews in Vietnam also use offset ring heads where flat panels block a straight handle.

Offset box end head QJXBM11A compared with similar brands

Before you buy, it helps to see how the offset box end head QJXBM11A compares with other head systems. Even so, the key question is not the head alone. Instead, it is whether the head fits the wrench bodies your team already owns and calibrates.

Choose the head system that matches your wrench bodies first, then compare sizes and limits. Snap-on offset heads suit metric bolts on J or Y shanks. Meanwhile, plants with other wrench brands may prefer their own inserts, so confirm current specs with each maker. Specifications change over time, so confirm current data with each maker before you decide.

Choosing the right model

• Start with the shank of your wrench body. A J-shank wrench takes only J-shank heads, while a Y-shank wrench needs Y-shank heads.
• Compare the bolt spec with the head rating. For example, a 100 ft-lb joint needs a Y-shank head, because J-shank heads top out at 60 ft-lb.
• Measure the fastener across its flats before you order. Some sizes look close, but a loose ring can round the corners under load.
• Check the clearance above each bolt before you choose. If a flat cover or flange blocks the handle, the 10° offset gives you room to pull.
• Note the head length listed for each shank size. Then check the wrench manual to see whether your setting needs a correction for that head.
• Plan a set of heads when one wrench body serves many jobs. That way, operators switch heads instead of reaching for an uncalibrated wrench.

For other sizes in the same range, compare 10° Offset Metric Box End Head – QJXBM18A, 10° Offset Metric Box End Head – QJXBM13A, 10° Offset Metric Box End Head – QYXBM18A, 10° Offset Metric Box End Head – QYXBM24A. Also browse the full Snap-on torque tools shop for handles, testers and adapters.

Care, storage and calibration

• Store each head in a drawer slot or case, away from loose tools. Then the ring and shank stay free of nicks that affect fit.
• Wipe oil and dirt from the ring and shank after each job with a dry cloth. Also check the ring for wear, because a worn ring can slip on bolt corners.
• Send the wrench body for calibration every 12 months or 5,000 cycles, as ISO 6789-1:2017 recommends. We can arrange recalibration through an accredited laboratory.
• Never set the wrench above the head's maximum working torque. Too much load can crack or spread the ring, so retire any head that shows damage.
• Pack heads in a padded case when you move them between sites. In addition, keep them dry during the humid season so the finish stays clean.

Frequently asked questions

Request a quote

Send us the part number, quantity and delivery site, and we will reply with a quote. You can request a quote online or call 0902 327 669.
