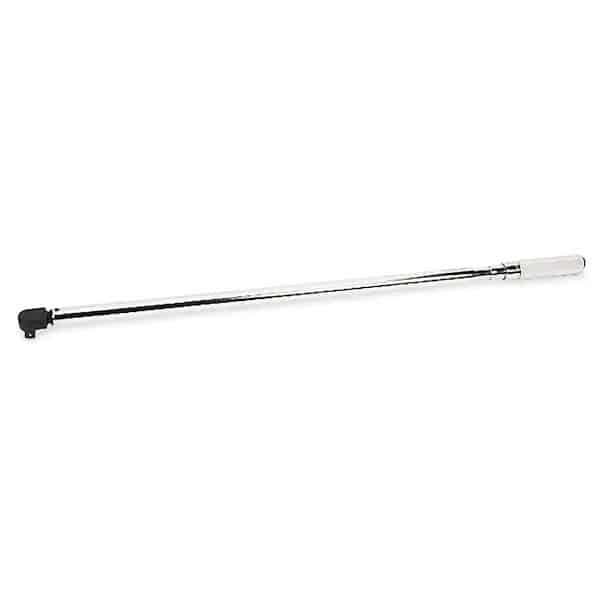

3/4″ Drive SAE Adjustable Click-Type Fixed Torque Wrench (120–600 ft-lb) – QD4600A

The click-type torque wrench QD4600A belongs to the Snap-on QD adjustable click-type torque wrenches range, and Lost in HCM supplies it to workshops and factories across Vietnam. Because it has a 3/4 in square drive, it pairs with standard 3/4 in sockets. The rated range is 120–600 ft-lb, as listed by Snap-on.

Click-type torque wrench QD4600A overview

Torque specs only help when the tool hits them every time. The click-type torque wrench QD4600A uses a cam and spring mechanism that releases at the set value. So the operator feels and hears the click, then stops pulling right away.

Newer 3/8 and 1/2 inch ratchet models use Dual 80® Technology, with an 80-tooth gear and a 4.5° swing arc. That means less handle travel in tight engine bays. Lost in HCM supplies these wrenches to FDI plants with CO/CQ papers and a VAT e-invoice.

The us patent is 4,934,220. Snap-on lists the country of origin as USA. The storage case is PBQC4.

The head style is Fixed. The head depth is 1-1/2 inches. The length is 40-3/4 inches.

The range is 600 ft-lb maximum.

Specifications at a glance

The table below follows the Snap-on data for QD4600A. In addition, we converted imperial torque values to N·m where Snap-on lists none.

How the click-type torque wrench works

Inside the tube, a spring presses a cam against a pivot block linked to the head. When you turn the handle, the set spring load resists the force. Then, at the set torque, the cam breaks over and the wrench gives a short click.

To set a value, you unlock the handle and turn it until the scale shows your target. Next, you lock the handle so the setting cannot drift. Finally, you pull smoothly at the grip until the click, and you stop at once.

Key features of the click-type torque wrench QD4600A

The details below explain how these wrenches deliver repeatable torque and fit tight spaces. They also show what to check before you add a new range or drive size to your toolbox.

• Adjustable click mechanism. You set the target on the handle scale, and the wrench clicks when it reaches that value. As a result, operators get a clear signal to stop, even in noisy workshops.
• Four square drive sizes. The family spans 3/8, 1/2, 3/4, and 1 inch drives. So one supplier covers light engine work, wheel nuts, and large machine bolts with the same click design.
• Ranges up to 1,000 ft-lb. Ranges start at 5 ft-lb on the 3/8 inch flex-head model and reach 1,000 ft-lb on the 1 inch wrench. Therefore, you can match each joint to a wrench with room to spare.
• Dual 80® ratchet technology. Newer 3/8 and 1/2 inch ratchet models use an 80-tooth gear with dual pawls. This design cuts the swing arc to 4.5°, so you can work in tight engine bays.
• Fixed, ratchet, and flex heads. You can choose a fixed square drive, a fixed ratchet, or a flex head. For instance, the flex head lets you angle the handle around obstacles while you keep a straight pull.
• Roll-marked scale on tube. Several models carry a roll-marked scale on the torque tube. Because the marks are pressed into the metal, they resist wear and stay easy to read over years of use.

Typical applications

These wrenches solve one problem well: tightening a bolt to spec without guesswork. Below are typical jobs where that matters, from wheel nuts to heavy machine flanges. Each one also rewards a calibrated, well-kept tool.

• Wheel nuts and lug bolts. Wheel nuts need even torque to seat the wheel and avoid warped rotors. A 1/2 inch click wrench in the right range gives every nut the same value, so the wheel sits true.
• Engine and transmission assembly. Cylinder heads, oil pans, and bell housings use bolts with set torque values. The low swing arc of Dual 80® models helps, because engine bays leave little room to move the handle.
• Suspension and chassis bolts. Control arms, subframes, and steering parts carry safety-critical torque specs. Therefore, technicians use a calibrated click wrench to tighten them and to confirm each joint after work.
• Heavy machine fasteners. Track bolts, mounting bolts, and large flanges often need several hundred ft-lb. In those cases, the 3/4 and 1 inch wrenches give the reach and range the job demands.
• Production line tightening. On assembly lines, operators repeat the same joint many times each shift. A click wrench gives a clear stop signal, so each joint matches the work instruction without guesswork.
• Maintenance on plant equipment. Pumps, motors, and gearboxes need correct torque on mounting and coupling bolts. Similarly, maintenance teams use these wrenches to bring each fastener back to spec after service.

Industries that use the click-type torque wrench QD4600A

Click-type torque wrenches matter wherever bolts must meet a set value on every shift. The industries below rely on them for daily work. Many of these teams also run FDI plants and service centers across Vietnam.

• Automotive service. Dealers and fleet workshops torque wheels, engines, and brakes on every shift. In Vietnam, FDI fleet operators often ask for calibrated tools with records, so these wrenches help them pass audits.
• Automotive and motorcycle assembly. Assembly plants need repeatable torque on engines, frames, and wheels. For this reason, lines in Vietnam's industrial parks use click wrenches for manual joints and final checks.
• Heavy equipment maintenance. Excavators, cranes, and haul trucks use large bolts with high torque values. So mining and construction contractors in Vietnam rely on 3/4 and 1 inch wrenches for track and frame work.
• Aviation maintenance. Aircraft maintenance manuals set torque values for wheels, brakes, and engine parts. Therefore, MRO teams at Vietnamese airports use calibrated click wrenches with clear records for each task.
• Factory maintenance. Plants in Binh Duong, Dong Nai, and Bac Ninh run pumps, presses, and conveyors that need correct torque. Maintenance teams also need tools that leave a clear record for ISO audits.
• Energy and power plants. Turbines, generators, and pumps use flange and mounting bolts with strict torque specs. Meanwhile, power plant crews in Vietnam use high-range click wrenches during planned outages.

Click-type torque wrench QD4600A compared with similar brands

Before you buy, it helps to see how the click-type torque wrench QD4600A compares with other click wrench lines. However, the best choice depends on drive size, range, and service support. Instead of specs alone, also weigh how easily you can calibrate the wrench in Vietnam.

If your team wants a US-made click wrench with a sealed ratchet, this line is a strong fit. It also offers a low swing arc on newer models. Even so, other makers suit different needs, so confirm current specs with each maker before you decide. Specifications change over time, so confirm current data with each maker before you decide.

Choosing the right model

• Pick a range where your target torque sits in the middle of the scale. Snap-on states accuracy from 20% of full scale, so avoid the bottom end.
• Match the square drive to your sockets and fastener size. For example, wheel nuts usually suit 1/2 inch drive, while large machine bolts need 3/4 or 1 inch.
• Choose a Dual 80® ratchet model when you work in tight engine bays. Its 4.5° swing arc needs far less handle travel than older 32-tooth heads.
• Pick a flex head when bolts sit behind brackets or at odd angles. However, keep the pull at a right angle to the handle for an accurate click.
• Check whether your plant works in ft-lb or N·m before you order. Then train operators to read the scale in the unit your work instructions use.
• Plan for recalibration from the day the wrench arrives. Each wrench carries a one-year Snap-on Repair Center warranty, and we can arrange recalibration through an accredited laboratory.

For other sizes in the same range, compare 1/2" Drive SAE Adjustable Click-Type Fixed Ratchet Torque Wrench (50–250 ft-lb) – GQT3R250NP, 3/8" Drive SAE Adjustable Click-Type Fixed Ratchet Torque Wrench (20–100 ft-lb)- QD2R100A, 1/2" Drive SAE Adjustable Click-Type Fixed Ratchet Torque Wrench (50–250 ft-lb) – QD3R250A, 1/2" Drive SAE Adjustable Click-Type Fixed Torque Wrench (30–150 ft-lb) – QD3150A. Also browse the full Snap-on torque tools shop for handles, testers and adapters.

Care, storage and calibration

• Store the wrench in its case after each shift. Also wind it down to the lowest scale setting, because that relieves the spring during storage.
• Wipe oil and dirt from the handle and head with a dry cloth. Never soak the wrench in solvent, since solvent can wash grease out of the mechanism.
• Send the wrench for calibration every 12 months or 5,000 cycles, as ISO 6789-1:2017 recommends. We can arrange recalibration through an accredited laboratory.
• Never use a click wrench to break loose rusted bolts or as a breaker bar. Overload can shift the setting, so check calibration after any drop or hard hit.
• Carry the wrench in its case when you move between sites. In addition, keep it dry during the rainy season so the scale and ratchet stay clean.
