3/8″ Square Drive Y-Shank Interchangeable Ratcheting Head – QYD12SL-80

The square drive ratcheting head QYD12SL-80 belongs to the Snap-on interchangeable square drive ratcheting heads range, and Lost in HCM supplies it to workshops and factories across Vietnam. Because it has a 3/8 in square drive, it pairs with standard 3/8 in sockets. It uses the Y (0.560") shank size, so it fits handles built for that shank.

Square drive ratcheting head QYD12SL-80 overview

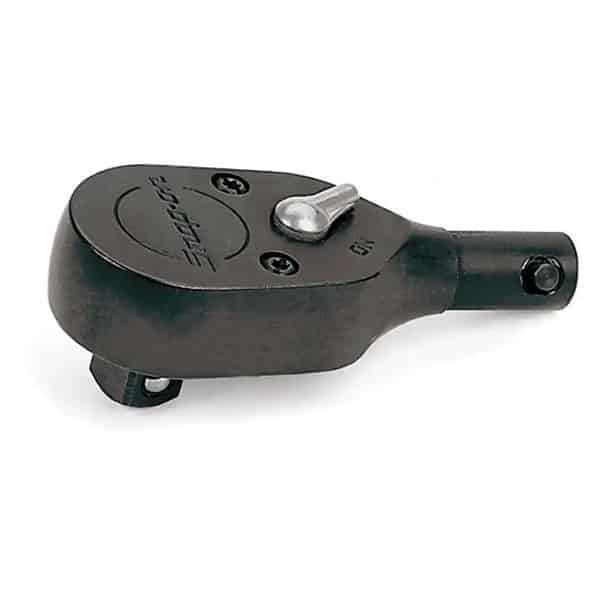

The square drive ratcheting head QYD12SL-80 turns an interchangeable head torque wrench into a ratcheting socket wrench. Its shank locks into the end of the wrench tube. Then you fit a socket on the square drive and torque the bolt without lifting the tool after each swing.

Snap-on builds this family in the USA for four shank sizes, J, Y, X, and Z. Square drives run from 1/4 inch up to 1 inch. Meanwhile, published working limits climb from 28 ft-lb on the smallest J head to 480 ft-lb on the Z heads.

The head o.d. is 1-1/4 inches. The repair kit is RKRF80. Snap-on lists the country of origin as USA.

The head depth is 9/16 inches. The square drive is 3/8 inches.

Specifications at a glance

The table below follows the Snap-on data for QYD12SL-80. In addition, we converted imperial torque values to N·m where Snap-on lists none.

How the square drive ratcheting head works

The distance from the fastener center to the retaining pin sets the working length of the head. For example, QJD series heads list 2.50 inches, while QZD heads list 5.75 inches. That is why the wrench manual may call for a setting correction with some heads.

Every head also has its own maximum recommended working torque, which may sit below the wrench rating. For instance, a 1/4 inch J head tops out at 28 ft-lb. So you set the wrench at or below the head limit, even on a larger body.

Key features of the square drive ratcheting head QYD12SL-80

The details below explain why these heads speed up bolting without losing torque control. They also show what to check before you add a new head to your wrench set.

• Four shank sizes. The family covers J (0.425 inch), Y (0.560 inch), X (0.735 inch), and Z (0.990 inch) shanks. So you can match light, medium, and heavy wrench bodies with the right head.
• Five square drive sizes. Square drives run from 1/4 inch for small fasteners up to 1 inch for heavy bolts. Therefore, one shank family can cover a wide range of sockets and jobs.
• Published working torque limits. Snap-on lists a maximum recommended working torque for most heads, from 28 ft-lb to 480 ft-lb. That figure tells you how far to set the wrench before the ratchet risks damage.
• Ratchet service kits. Most heads list a matching ratchet service kit, such as RKRF80 or RKRS80A. As a result, you can renew a worn pawl or spring instead of replacing the whole head.
• Dual pins on Z heads. The QZD heads use dual retaining pins on the Z shank. This design suits the 3/4 inch and 1 inch drives, because these heads carry the highest loads in the family.
• Listed head length data. Each series lists its distance from fastener center to retaining pin, from 2.50 to 5.75 inches. In addition, this data helps you apply any length correction the wrench manual requires.

Typical applications

A ratcheting head earns its place where a socket fits but there is no room for a full swing. The tasks below are the most common uses we see from buyers.

• Wheel and hub bolts. Wheel nuts and hub bolts need high, repeatable torque on every stud. So a 1/2 inch Y or X head lets technicians ratchet down fast, then pull to the final value.
• Engine and gearbox assembly. Engine builds mix small cover bolts with heavy main and head bolts. Therefore, a J head handles the light work, while a Y or X head takes the larger fasteners on the same bench.
• Production line torque stations. On assembly lines, a preset interchangeable wrench with a ratchet head gives every operator the same result. In addition, the ratchet saves time because the operator never lifts the socket off the bolt.
• Heavy equipment track and frame bolts. Track shoes, frame mounts, and slew rings use large bolts with high torque values. The 3/4 inch and 1 inch Z heads suit these jobs, since their limit reaches 480 ft-lb.
• Flange and pump bolts. Pump mounts and pipe flanges need even torque around the bolt circle to seal well. So crews use a ratchet head to move quickly from bolt to bolt in a set pattern.
• Small fasteners in tight spaces. The 1/4 inch J heads have a low 7/16 inch head depth for small bolts. For example, they suit sensor mounts, brackets, and covers where a bulky ratchet will not fit.

Industries that use the square drive ratcheting head QYD12SL-80

Ratcheting torque heads matter wherever many bolts must reach a known value in a short time. The industries below rely on them every day. Many of these teams also work in FDI plants across Vietnam.

• Automotive service. Dealers and fleet workshops torque wheel, suspension, and engine bolts every day. In Vietnam, many FDI fleet operators require documented torque values, so calibrated ratchet heads help them pass audits.
• Automotive assembly. Car and motorbike plants use interchangeable wrenches at stations with several bolt sizes. As a result, lines in Vietnam's industrial parks can swap heads instead of buying a new wrench for each size.
• Heavy equipment maintenance. Excavators, cranes, and mining trucks rely on large bolts with high torque specs. For this reason, contractors in Vietnam pair X and Z heads with long wrench bodies for track and frame work.
• Aviation maintenance. Aircraft work calls for exact torque values listed in the maintenance manual. Therefore, MRO teams at Vietnamese airports use small J and Y ratchet heads on calibrated wrenches for each task card.
• Energy and power plants. Turbines, pumps, and transformers have flange and mount bolts on strict service plans. So power plant crews in Vietnam use ratchet heads to tighten bolt patterns quickly and log each value.
• Factory maintenance. Plants in Binh Duong, Dong Nai, and Bac Ninh run US machines with inch fasteners. Maintenance teams also need tools that leave a clear torque record for ISO audits.

Square drive ratcheting head QYD12SL-80 compared with similar brands

Before you buy, it helps to see how the square drive ratcheting head QYD12SL-80 compares with other head systems. However, the key question is not the head alone. Instead, it is whether the head fits the wrench bodies your team already owns and calibrates.

Choose the head system that matches your wrench bodies first, then compare drive size and torque limits. Snap-on heads suit J, Y, X, and Z shanks. Meanwhile, plants on rectangular insert systems should confirm current specs with each maker. Specifications change over time, so confirm current data with each maker before you decide.

Choosing the right model

• Start with the shank of your wrench body. A J-shank wrench takes only J-shank heads, and the same rule applies to Y, X, and Z.
• Match the square drive to your sockets. Then check that the head limit covers your torque spec, because a small drive may stop well below the wrench range.
• Compare the bolt spec with the head rating. For example, a 200 ft-lb joint needs an X or Z head, since Y heads top out at 160 ft-lb.
• Check the clearance above each fastener. If space is tight, pick the head with the lowest listed head depth that still meets the torque spec.
• Note the fastener-to-pin distance of each head. If it differs from your wrench standard, apply the correction from the wrench manual.
• Read the warranty and service kit line on each product page. Many heads carry a lifetime warranty, while others are field repairable with a kit.

For other sizes in the same range, compare 1/4" Square Drive Ratcheting Head, J-Shank – QJD8A-72, 3/8" Square Drive Ratcheting Head, Y-Shank – QYD12A-80, 3/8" Square Drive Ratcheting Head, J-Shank – QJD12A-80, 3/4" Square Drive Ratcheting Head, Z-Shank, Dual Pins – QZD24BDP. Also browse the full Snap-on torque tools shop for handles, testers and adapters.

Care, storage and calibration

• Store each head in a drawer slot or case, away from loose tools. Then the shank and retaining pin hole stay free of nicks that affect fit.
• Wipe off oil and grit after each job with a dry cloth. Also keep the ratchet mechanism clean, because dirt can cause slipping under load.
• Send the wrench body for calibration every 12 months or 5,000 cycles, as ISO 6789-1:2017 recommends. We can arrange recalibration through an accredited laboratory.
• Never set the wrench above the head's maximum working torque. Too much load can damage the pawl or gear, so service or retire any head that slips.
• Pack heads in a padded case for transport between sites. In addition, keep them dry during the humid season so the finish and gears stay clean.

Frequently asked questions

Request a quote

Send us the part number, quantity and delivery site, and we will reply with a quote. You can request a quote online or call 0902 327 669.
