ControlTech® Link 250 X Shank Interchangeable Head Digital Torque Wrench (12.5-250 ft-lb) – CTLNK3X250

The interchangeable head torque wrench CTLNK3X250 belongs to the Snap-on ControlTech® Link interchangeable head digital torque wrenches range, and Lost in HCM supplies it to workshops and factories across Vietnam. Snap-on lists its working range as 12.5-250 ft-lb. The torque range is 12.5–250 ft-lb.

Interchangeable head torque wrench CTLNK3X250 overview

Plants that use many head styles need one calibrated body, not a drawer full of wrenches. The interchangeable head torque wrench CTLNK3X250 gives you that, since the digital body stays the same while heads change. In short, you buy and calibrate fewer tools.

The four shank letters match four torque classes, from light J-shank work to heavy Z-shank bolts. Meanwhile, the digital screen shows the value you reach on every pull. Lost in HCM supplies these wrenches to FDI plants with CO/CQ papers and a VAT e-invoice.

The torque range is 150–3,000 in-lb. Snap-on lists the country of origin as USA. Its max torque is 250 ft-lb, about 339 N·m.

The drive size is X Shank. The torque range is 16.9–339 N•m.

Specifications at a glance

These figures come from the Snap-on listing for CTLNK3X250. Values marked “calculated” are unit conversions we added for convenience.

How the interchangeable head torque wrench works

The wrench reads torque based on a standard head length from the handle to the drive. However, some heads reach farther or sit offset from the shank. In that case, the wrench manual explains how to correct the setting for that head.

Also, each shank letter sets which heads fit the body. For instance, a J-shank wrench takes only J-shank heads, while a Z-shank body needs Z-shank heads. That is why you always match the head shank to the wrench before you start.

Key features of the interchangeable head torque wrench CTLNK3X250

Every model in this family shares the same idea: one digital body that takes many heads. Here are the features that matter most when you compare options for your team.

• Four shank sizes. The range comes in J, Y, X, and Z shanks, each tied to its own torque class. So you can choose a light J body for small work or a Z body for heavy bolts.
• Ranges up to 600 ft-lb. Listed ranges start at 1–20 ft-lb and reach 30–600 ft-lb on the largest model. Therefore, one wrench family covers small fittings as well as large structural fasteners.
• One body, many heads. The same digital body accepts ratchet, open-end, and flare nut heads with a matching shank. As a result, technicians switch heads during a job instead of reaching for another wrench.

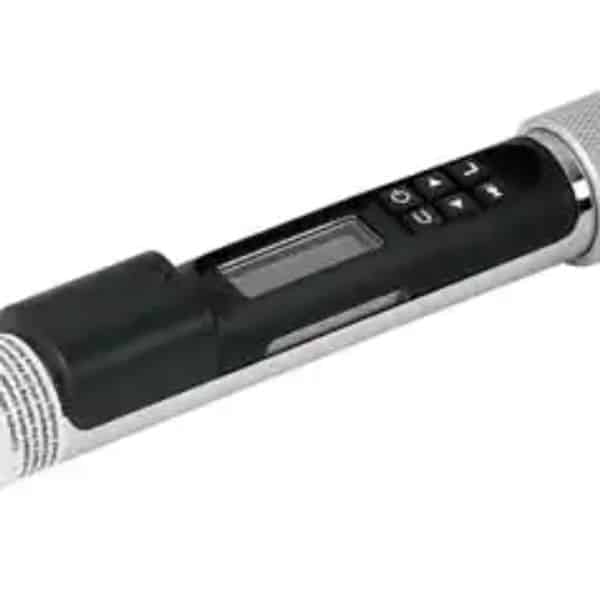

• Digital torque readout. The screen shows the torque value as you pull, so you never judge a click by feel. In addition, a clear number helps new operators learn the right pull.
• Three published units. Snap-on lists each range in ft-lb, in-lb, and N·m on the data sheet. That makes it easy to compare a model with specs from US, Japanese, or European manuals.
• Part of the ControlTech® line. These wrenches belong to the ControlTech® industrial family from Snap-on. Because of this, plants can build one digital tool system across fixed head and interchangeable head models.

Typical applications

An interchangeable head body earns its place where one head shape cannot reach every fastener. The tasks below are common uses we see in Vietnam, from small fittings to large bolts.

• Tube nuts and line fittings. Brake, fuel, and hydraulic lines need a flare nut head to grip the fitting without crushing it. A digital interchangeable head body lets you torque those nuts to a clear number.
• Tight spaces behind brackets. Some bolts sit where a ratchet head cannot swing or a socket cannot reach. Therefore, an open-end or offset head on the same body solves the access problem.
• Mixed fastener production lines. Lines that tighten bolts, nuts, and fittings at one station can use one body with several heads. That way, operators carry fewer tools and still hit each target value.
• Heavy equipment hydraulics. Large hydraulic fittings and frame bolts on loaders and cranes need higher torque. The X and Z models cover these jobs, with ranges up to 250 and 600 ft-lb.
• Aircraft and helicopter maintenance. Aircraft fluid lines and fittings often need special heads and strict torque values. A digital body with the right head helps technicians meet the manual spec on each joint.
• Field service kits. Field technicians need a compact kit, yet it must still cover many fastener types. So one digital body plus a small set of heads fits in a case and travels well.

Industries that use the interchangeable head torque wrench CTLNK3X250

Interchangeable head wrenches matter wherever one team tightens many fastener types. The industries below rely on them every day. Many of these teams also work in FDI plants and service centers across Vietnam.

• Automotive service. Dealers and fleet workshops torque lines, brackets, and engine parts every day. In Vietnam, FDI fleet operators often want documented values, so a digital body with swap heads fits well.
• Aviation maintenance. Aircraft MRO work uses many fitting sizes and head styles with strict values. Therefore, teams at Vietnamese airports use interchangeable head bodies to cover more jobs with fewer tools.
• Heavy equipment. Excavators, cranes, and forklifts use inch hydraulic fittings and large frame bolts. Contractors in Vietnam choose X and Z models because they need high ranges in the field.
• Vehicle assembly plants. Assembly plants in Hai Phong, Bac Ninh, and Dong Nai tighten mixed fasteners at each station. A single digital body with several heads helps operators move fast and stay on spec.
• HVAC and refrigeration. Chillers and split systems use flare fittings that crack when overtightened. So contractors serving factories in Vietnam's industrial parks use flare nut heads on a digital body.
• Factory maintenance. Plants in Binh Duong and Bac Ninh maintain pumps, presses, and conveyors with many fastener types. In addition, a digital readout gives maintenance teams a clear value for their records.

Interchangeable head torque wrench CTLNK3X250 compared with similar brands

Several makers sell digital wrenches that take interchangeable heads or inserts. Each system uses its own shank or insert fitting, so heads rarely swap across brands. The comparison below shows where the interchangeable head torque wrench CTLNK3X250 fits among common choices.

Choose the head system that matches your current tools first, then compare range and readout features. Snap-on bodies suit teams with Snap-on or CDI heads. Meanwhile, plants on other systems may stay with them, so confirm current specs with each maker. Specifications change over time, so confirm current data with each maker before you decide.

Choosing the right model

• Start with the heads you already own. A J-shank head fits only a J-shank body, so match the shank letter before you choose a range.
• Pick a range that puts your usual targets in the middle of the scale. For example, 80 ft-lb jobs suit the Y model better than the Z model.
• Check the head length correction in the manual for any long or offset head. Then set the wrench so the reading matches the real torque at the fastener.
• Plan a head set for each body you buy. That way, technicians switch heads on one calibrated wrench instead of using an unmeasured tool.
• Compare the N·m figures if your manuals use metric values. Snap-on lists each range in ft-lb, in-lb, and N·m, which makes the check quick.
• Ask us for the user manual before you order if your process has strict rules. The manual explains settings, head corrections, and care for each model.

For other sizes in the same range, compare ControlTech® Link 100 Y Shank Interchangeable Head Digital Torque Wrench (5-100 ft-lb) – CTLNK2Y100, ControlTech® Link 600 Z Shank Interchangeable Head Digital Torque Wrench (30-600 ft-lb) – CTLNK4Z600, ControlTech® Link 240 J Shank Interchangeable Head Digital Torque Wrench (1-20 ft-lb) – CTLNK1J240. Also browse the full Snap-on torque tools shop for handles, testers and adapters.

Care, storage and calibration

• Store the body in its case in a dry cabinet, away from heat and direct sun. Also keep heads in their own slots so shanks stay free of nicks.
• Wipe the body and heads with a dry cloth after use. Never soak the wrench or use solvents, because liquids can harm the electronics and seals.
• Recalibrate every 12 months or 5,000 cycles, as ISO 6789-1:2017 recommends, or sooner after a drop. We can arrange recalibration through an accredited laboratory.
• Never pull past full scale or above the head rating. Overload can shift the sensor or spread a head, so send the tool for checks after any overload.
• Carry the body and heads in a padded case between sites. In humid months, add desiccant to the case to protect the electronics and the steel shanks.

Frequently asked questions

Request a quote

Send us the part number, quantity and delivery site, and we will reply with a quote. You can request a quote online or call 0902 327 669.
