Ratcheting Flare Nut Head – RTWH48YSL

The ratcheting flare nut head RTWH48YSL belongs to the Snap-on interchangeable ratcheting flare nut heads range, and Lost in HCM supplies it to workshops and factories across Vietnam. It uses the Y (0.560") shank size, so it fits handles built for that shank. The size is 3/4 inches.

Ratcheting flare nut head RTWH48YSL overview

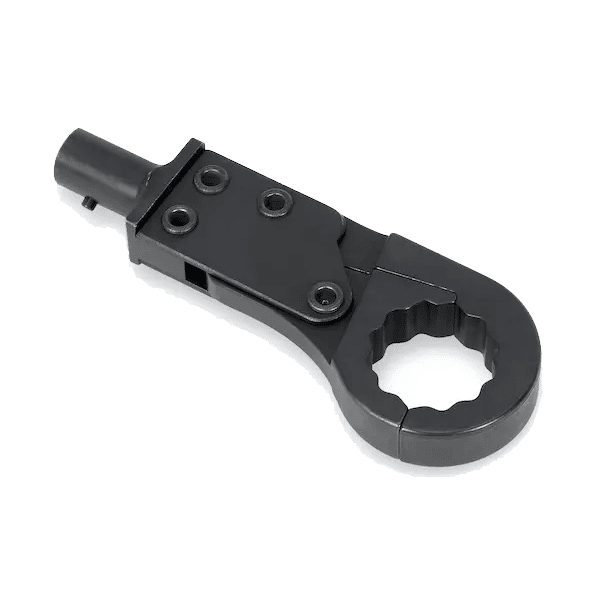

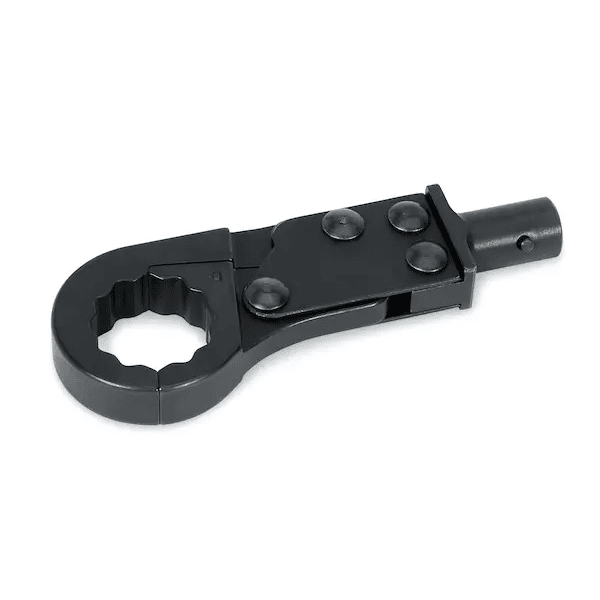

The ratcheting flare nut head RTWH48YSL is a 12-point inch head for interchangeable head torque wrenches. Its open ring slips over a tube, then ratchets on the nut. As a result, you can torque a line fitting without lifting the head after every swing.

Snap-on makes this family in the USA in J, Y, and X shank sizes. J-shank heads run from 7/16 to 7/8 inch, while Y-shank heads cover 3/8 to 1-7/8 inch. In addition, one X-shank head serves 1-1/2 inch fittings on heavier wrench bodies.

Snap-on lists the country of origin as USA.

Specifications at a glance

These figures come from the Snap-on listing for RTWH48YSL. Values marked “calculated” are unit conversions we added for convenience.

How the ratcheting flare nut head works

An interchangeable head torque wrench has a socket at the tip of its tube instead of a fixed ratchet. You push the head shank into that socket until the pin locks it. Then the wrench measures torque through the head, so the click still marks your set value.

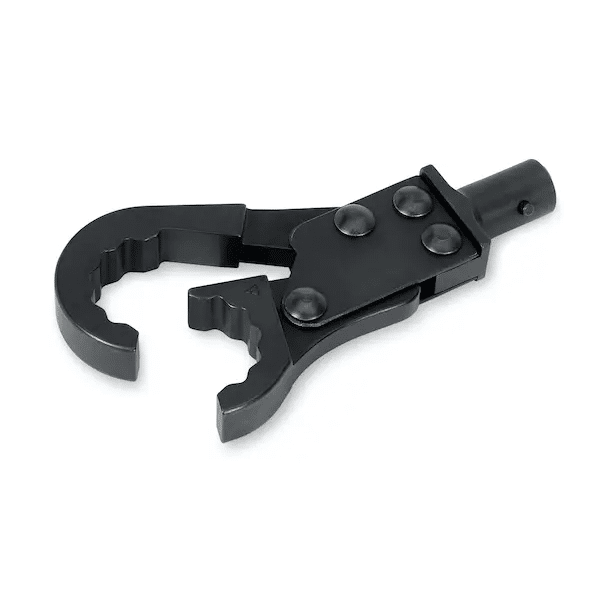

The ratcheting flare nut head has an opening in its ring that lets it pass over a tube. First, you slide the opening over the line and seat the ring on the nut. Next, you swing the handle, and the head ratchets back without leaving the nut.

Key features of the ratcheting flare nut head RTWH48YSL

Every head in this family shares the same design logic, from the 12-point ring to the ratcheting action. Here are the features that matter most when you compare options for your team.

• Ratcheting open ring design. The head ratchets on the nut while its open ring stays around the tube. As a result, you can tighten a fitting in short swings without lifting and resetting the head each time.
• Twelve-point nut engagement. A 12-point profile lets the head drop onto a hex nut every 30 degrees. So you can find a working handle angle quickly, even when brackets and hoses block most positions.
• Three shank sizes available. The family covers J (0.425 inch), Y (0.560 inch), and X (0.735 inch) shanks. Therefore, you can match each head to the wrench body your team already owns and calibrates.
• Wide inch size range. Sizes run from 3/8 inch up to 1-7/8 inch across the Y-shank line. In addition, J-shank heads cover the common 7/16 to 7/8 inch band for lighter line work.
• Boeing ST2599 compliance. Snap-on states that these heads are designed and made in compliance with Boeing ST2599 specifications. That matters to aviation teams, because their tooling lists often name the standard a tool must meet.
• Metric sizes on request. The standard line uses inch sizes, but Snap-on also offers metric sizes on special order. For instance, a plant with metric hydraulic fittings can ask us to request a matching size.

Snap-on data sheet notes

In addition, the Snap-on data sheet for RTWH48YSL notes:

• Designed and manufactured in compliance with Boeing ST2599 specifications.
• Metric sizes available on special order.
• See your Snap-on® representative for details.

Typical applications

These heads solve one problem well: torquing a tube nut in a tight spot without lifting the tool. Below are typical jobs where that matters, from aircraft lines to hydraulic fittings.

• Aircraft fluid line fittings. Aircraft fuel, hydraulic, and oxygen lines use inch tube nuts with strict torque values. Because these heads ratchet in place, technicians can torque fittings deep inside wheel wells and engine bays.
• Hydraulic tube connections. Presses, loaders, and lifts use large inch tube fittings that need firm, even torque. The bigger Y-shank sizes suit this work, since they reach up to 1-7/8 inch nuts.
• Brake and fuel lines. Brake and fuel tube nuts are small and easy to round off with the wrong tool. A ratcheting flare nut head grips the flats, so you reach the spec and avoid a leak.
• Fittings with short swing room. Many line nuts leave only a small arc for the handle between frame rails or brackets. Therefore, the ratchet and the 12-point ring let you finish the joint in many short strokes.
• Refrigeration and HVAC piping. Copper flare joints on chillers and refrigeration units must seal without cracking the flare. In this case, a calibrated wrench and a matching head give each joint a controlled, repeatable torque.
• Production line tube joints. On assembly lines, operators torque the same line fittings on every unit. A preset wrench with a ratcheting flare nut head speeds each cycle, while the click confirms the final value.

Industries that use the ratcheting flare nut head RTWH48YSL

Ratcheting flare nut heads matter wherever tube fittings sit in tight spaces and must seal at a known torque. The industries below rely on them every day. Many of these teams also work in FDI plants and hangars across Vietnam.

• Aviation maintenance. MRO teams torque fuel and hydraulic lines to values set in the maintenance manual. In Vietnam, hangars serving airline fleets often require tools that meet Boeing specifications, so these heads fit their tool lists.
• Heavy equipment maintenance. Excavators, cranes, and forklifts use inch hydraulic fittings in many US-designed models. For this reason, mining and construction contractors in Vietnam use large Y-shank heads on high-pressure lines.
• Automotive service. Dealers and fleet shops work on brake, fuel, and cooler lines every day. Meanwhile, FDI fleet operators in Vietnam ask for recorded torque values, so calibrated heads support their audits.
• HVAC and refrigeration. Chillers and cold rooms use copper flare nuts that leak when torque is wrong. Contractors serving factories and offices in Vietnam's industrial parks use these heads to seal joints at a known value.
• Factory maintenance. Plants in Binh Duong, Dong Nai, and Bac Ninh run US machines with inch hydraulic and coolant lines. Maintenance crews also need tools that leave a clear torque record for ISO audits.
• Energy and power plants. Turbines, compressors, and generator sets use tube fittings on lube oil and fuel lines. So power plant crews in Vietnam use ratcheting heads to tighten these lines in tight spaces.

Ratcheting flare nut head RTWH48YSL compared with similar brands

Several makers sell ring and open-ring heads for interchangeable head torque wrenches. However, each system uses its own shank or insert fitting, so heads rarely swap across brands. The comparison below shows where the ratcheting flare nut head RTWH48YSL fits among common choices.

If your team already uses Snap-on or CDI interchangeable head wrenches, these heads are the simplest choice. They lock into the bodies you own and cover a wide inch range. Even so, confirm current specs with each maker before you compare options. Specifications change over time, so confirm current data with each maker before you decide.

Choosing the right model

• Start with the shank of your wrench body. A J-shank wrench takes only J-shank heads, while Y and X bodies need their own matching heads.
• Measure the tube nut across its flats before you order. Inch and metric sizes look close, but a loose fit can round the nut under load.
• Check the maximum working torque of the head in the Snap-on manual. Then set the wrench at or below that limit, even if the body goes higher.
• Look at the swing room around each fitting before you choose. If the handle can only move a short arc, a ratcheting head saves real time.
• Ask about metric sizes early when your plant uses metric tube fittings. Snap-on offers them on special order, so lead times differ from stock inch sizes.
• Read the warranty line on each product page. Most heads carry a lifetime warranty, but a few list a different materials and workmanship term.

For other sizes in the same range, compare Ratcheting Flare Nut Head – RTWH56Y, Ratcheting Flare Nut Head – RTWH52JSL, Ratcheting Flare Nut Head – RTWH80Y, Ratcheting Flare Nut Head – RTWH68YSL. Also browse the full Snap-on torque tools shop for handles, testers and adapters.

Care, storage and calibration

• Store each head in a drawer slot or case, away from loose tools. That way, the ring opening and shank stay free of nicks that affect fit.
• Wipe off fuel, oil, and hydraulic fluid after each job with a dry cloth. Also check the ring for burrs, because a burr can mark soft fittings.
• Send the wrench body for calibration every 12 months or 5,000 cycles, as ISO 6789-1:2017 recommends. We can arrange recalibration through an accredited laboratory.
• Never set the wrench above the head's maximum working torque. Too much load can spread the open ring, so retire any head that shows a widened gap.
• Pack heads in a padded case when you move them between sites. In addition, keep them dry during the humid season so the finish and ratchet stay clean.
